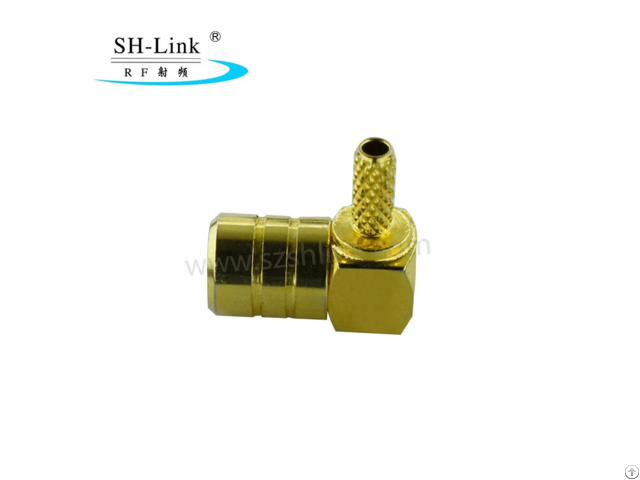

RF Coaxial SMB Female Jack Crimp Right Angle Connector for BT3002 Cable

TYPE SMB Products is one Kind of low power miniature RF coaxial Connectors with snap-on coupling mechanism.

Characteristic impedance has two types: 50Ω and 75Ω.

The characteristic of connectors is in small Volume , Light weight, excellent electrical performance, Easy to use.

They are widely used in connection with RF coaxial cable China in RF circuit of radio communication, test instrument, meter, radio station, TV station, the base ststion of the microwave system.

MAJOR TECHNICAL CHARACTERISTICS：

Temperature range -55—+155℃(PE Cable -40—+85℃)

Impedance 50Ω, 75Ω

Frequency range DC-4GHz(50Ω);DC-2GHz(75Î ©)

Working voltage 335V r.m.s at sea level

Withstanding voltage 1000V r.m.s at sea level

SMB Connector Contact resistance Center contact ≤6mΩ

Outer contact ≤1mΩ

Insulation resistance ≥1000MΩ

Center conductor retention force ≥0.28N

Insertion loss 0.30dB/1.5GHz

Engagement force 8~63N

Disengagement force 8~63N

Voltage Standing Wave Ratio Straight ≤1.35/3GHz

Right angle ≤1.45/1GHz

Durability(mating) ≥500(Cycles)
