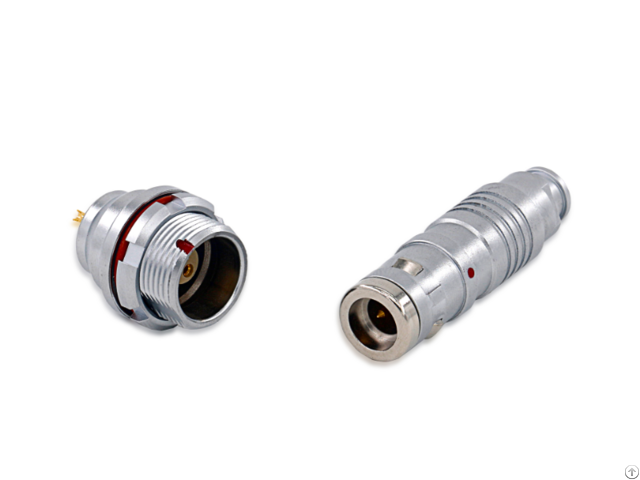

Push Pull Self Latching K Series Metal Watertight Connectors - China

Push-pull Self-latching K series metal watertight connectors Part Number: FGG.

0K.

302 - CLAD42Z/EEG.

0K .

302 - CLL Series/Size: 0K Number of pins: 2pin Housing Material(plug): Brass(Chrome plated) shell and collet nut, brass(nickel plated) latch sleeve and mid pieces Housing Material(socket): Brass(Chrome plated) shell, brass(nickel plated) nuts Insulator Material: PPS Contact Material: Brass, gold plated Contact Type: solder Contact Diameter: 0.9mm Max Mating: 5000 K series main features: 1) Security of the push-pull self-latching system 2) Solder or print contacts(straight or elbow) 3) 360 degree screening for full EMC shielding 4) Multipole types contacts 5) Rugged housing extreme working conditions 6) Multipole key options to avoid cross mating of similar connectors 7) Watertight connection(IP 68/ IP 66) 8) High packing density for space saving 9) Keying system for connector alignment CE, FCC, RoHS, REACH compliance

Company Contact:

• Posted By: Whirltech Electronic Co., Ltd

• Phone: +86-755-21381826

• Address: 5/F, Tong'an science and technology park, No.53 xinwei road, Jiangshi village, Gongming town, Shenzhen , Guangdong , China

• Email:

• Website: https://whirltech-connectors.com

• Business Description: Whirltech was founded in 2005 - We are a professional manufacturer of circular/push-pull self-latching connectors and medical cables.

  In China, we are the only one manufacturer who use imported CNC lathes to produce circular connectors.

  With imported CNC lathes, we can produce connectors in one time, no secondary process, which ensures the precision and consistency of our connectors.

  For example,the tolerance of our connectors before plating can be within 0.01mm.

  Our connectors are RoHS, REACH, CE and FCC compliant.

  With more than 14 years experience in medical cables, we also do cable assembly with connectors for our customers.

  Whirltech also supply OEM services.

  We have designed some connectors for military application and research institute.
