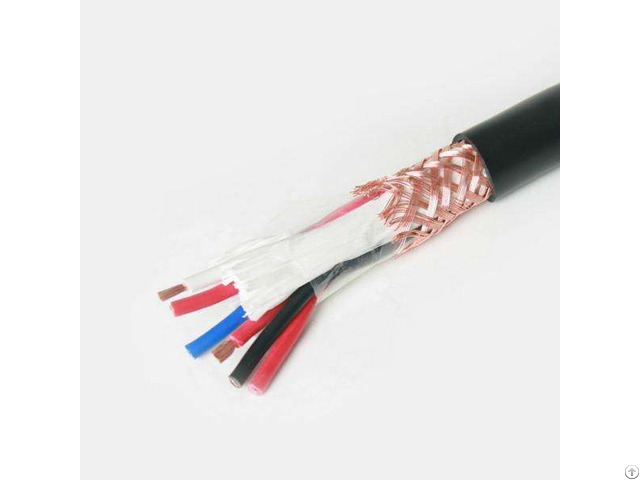

High Quality Computer Monitor Cable Signal Digital Low Voltage Pe Insulated - China

High Quality Computer Monitor Cable, Signal Cable, Digital Cable low voltage PE insulated computer monitor cable Computer cable belongs to electrical equipment cable.

This cable is suitable for electronic computers and automatic instruments with higher requirement for anti-interference in rated voltage up to 500V.

Cable insulation can be made of polyethylene, polyvinyl chloride, crosslinked polyethylene, fluoroplast, silicon rubber, etc.

Conventional computer cable laying low environmental temperature 0 ℃.

Minimum bending radius: the unarmored structure shall not be less than 6 times of cable outer diameter, and the shielded structure with armored or copper tape shall not be less than 12 times of cable outer diameter.

This product is suitable for electronic computer and automatic connection cable with high requirement of anti-interference for rated voltage up to 500V.

The insulation of cable ground wire adopts k-type B low density polyethylene with antioxidant property.

Polyethylene has high insulation resistance, good voltage resistance, low dielectric coefficient and small effect of medium loss temperature and variable frequency.

In order to reduce crosstalk and external interference between loops, the cable adopts shielding structure.

The cable shielding requirements are based on different occasions: the combination of the twisted shielding, the cable of the twisted shielding, the combined shielding after the twisted shielding methods.

Shielding material has round copper wire, copper strip, aluminum strip/plastic composite strip three.

The shielding pair and the shielding pair have good insulation performance.

If there is potential difference between the shielding and the shielding pair in the use of cable, the transmission quality of the signal will not be affected.

Company Description:

SHANGHAI HONGSHENG WIRE AND CABLE CO., LTD., located in no.

7, no.

4769, Jinqian High Way, Fengxian district, Shanghai, China, is a National High-tech Enterprise and the president enterprise of Shanghai wire and cable association.

Our company is a collection of professional research and development, design, production, sales of special wire and cable.

Company in line with to the science and technology as the first productive force, long-term commitment to three areas of research and management--building cable, new energy cable and Industrial equipment automation cable.

After years of development, in all areas of wires and cables have been widely recognized in the industry and good market reputation.

So far, the company has a number of invention and utility model patents, has passed ISO9001 quality management system and 14001 environmental management system, 18001 occupational health and safety management system, China quality certification center CCC, CE, German TUV certification.

Company's main products include: Flexible fireproof cables, Electrical automation control cable, Cable drag chain, Middle and low voltage power cable, PV cable, Charging pile cable, cloth wire and wind cable, and other series of thousands of varieties specifications.

In addition, buyers can customize their own wires and cables according to their specific needs.
