Din Horizontal Nh Fuse Switch Disconnectors - China

Quick Details

Place of Origin:

Zhejiang, China (Mainland)

Brand Name:

Solarson

Model Number:

HR17

Usage:

Low Voltage

Breaking Capacity:

High

Safety Standards:

IEC 60269, EN60269

Rated voltage:

400, 500 and 690 V ac/dc

Rated current:

160A, 200A, 250A, 315A, 355A, 400A

Interupting capacity:

DC 50kA

Certificate:

IEC/EN60269 IEC/EN60947

Operating class:

gG/gL, aM, aR Supply Ability

Supply Ability:

100000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details

carton

Port

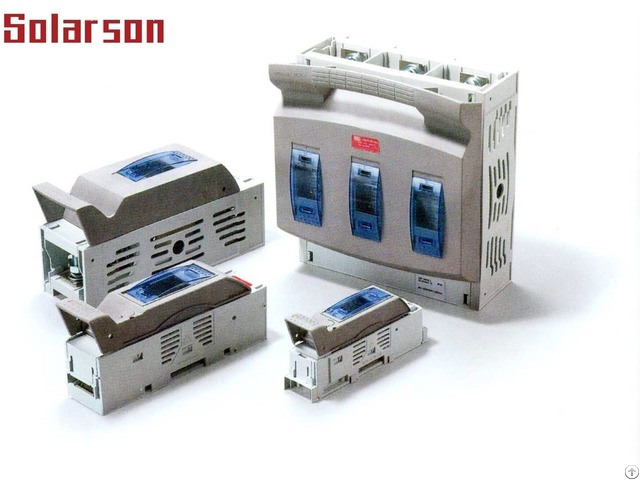

Ningbo/Shanghai DIN Horizontal NH Fuse Switch Disconnectors Product Description Product description China Aidun Electrical produce “SOLARSON”brand HR17 series DIN Horizontal NH Fuse Switch Disconnectors are specifically designed to be used with NH2 fuse links.

All energised metal parts are fully protected against accidental contact.

These are manually operated switches and the making and breaking is dependent on the speed of the operation.

Technical data Rated current of fuses : 160A, 200A, 250A, 315A, 355A, 400A Rated voltage: 400, 500 and 690 V a.

c/dc Interupting capacity: DC 50kA Operating class: gG/gL, aM, aR According to IEC/EN60269 and IEC/EN60947
