Delock Fakra Z Lug Spring Pin - China

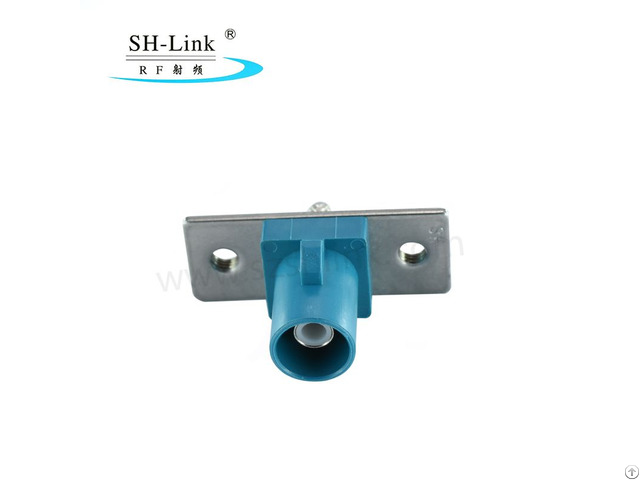

Delock FAKRA Z lug spring pin for soldering 2 prepunched holes SHM.

900.0006-4 - Z

FAKRA connector is one of the auto parts.

They are widely used in GPS, Remote control, car phone, car TV, hi-fi equipment, antennas, etc.

It is mate with the same colors or FAKRA Male Connector With Spring and socket, and the structure is to be double-locked and fool-proofing for them

Major characteristics:

Double-locked, fool-proofing assembly with the color and the structure

The connector is be protected by the cap .

Easy to assembly

Many difference between the connector and the cap.

The product technical characteristics:

Body: Brass, Ni-plated

Socket: beryllium-copper, Gold-plated

Pin contact: Brass

Insulator: PTFE

Crimp ferrule: brass, Ni-plated

O-ring: beryllium-copper

Shell: PA66+30%GF

Sihanming Delock FAKRA lug spring pin Technical characteristics

Impedance: 50Ω

Frequency Range: 4GHz

Withstanding Voltage: 1000V(RMS)

Contact resistance:

Center contact: ≤ 20m

Outer contact: ≤10m

Insulation: ≥1, 000MΩ

VSWR: DC - 2GHz<1.2 Sihanming Car TV Fakra Male Right Angle Connector Mechanical characteristics:

Assembly: locked

Durability: ≥ 500 cycles

Temperature: - 40 - +85°C
