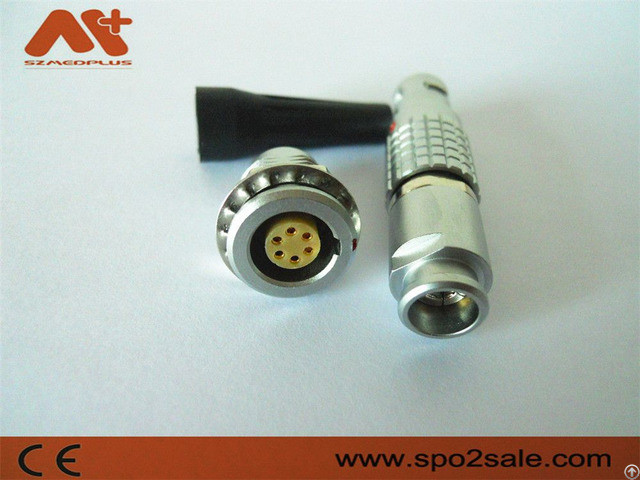

B Series 6 Pins Metal Circular Push Pull Connector Compatible Lemo Fgg Plug - China

Straight plug, locating pin (G or J), cable clamp, PEEK housing, And a jacketed tail cap.

Features: · Straight male plug with nut for bend relief.

· Push-pull self-latching system for mating and unmating easily.

· Multi-contact types 2 to 26 contacts · Solder pins for cable · Keying system ("G"key standard) for connector alignment · Multiple key options to avoid cross mating of similar connectors · High packing density for space savings · 360° screening for full EMC shielding.

Technical characteristics: Mechanical and Climatically 1 - Endurance: > 5000 mating cycles; 2 - Humidity : up to 95% at 60 degree; 3 - Temperature range: -45, +125 ; 4 - .

Resistance to vibration : 15 g[10 HZ-2000HZ]; 5 - Shock resistance: 100 g, 6 MS; 6 - Salt spray corrosion test : > 48h; 7 - Protection index (mated) : IP50.

Company Contact:

• Posted By: Shenzhen Medplus Electronic Tech Co., Ltd.

• Phone: 13267182707

• Address: 2 / F, Building No.1, Tianliao Gas Station,Tianliao Community, Gongming Street, Guangming New Distri, ShenZhen , GuangDong , China

• Email:

• Website: http://www.med-connector.com/

• Business Description: Shenzhen Medplus Electronic Tech Co., Ltd. is a precision modernized enterprise who integrating R&D, design, manufacture and sales the connectors, medical instrument accessories and consumables.

  The main products including various series circular plug-in self-locking connector, medical device connectors high pressure connector, gas quick connector, Video equipment connectors, Testing Equipment connectors, Aerospace connectors, Instrumentation connectors, Military equipment connectors etc., also provide professional connectors and wire harness customization service.

  Products are widely used in communications, medical, laser, automotive, surveying, mapping and testing, military and other equipment.

  With excellent product performance, reliable quality, reach the international advanced level, the product design is in line with international similar products and can be used interchangeably with foreign famous brands.

  Products are exported to Europe and the United States, Southeast Asia, Africa and other countries and regions.
