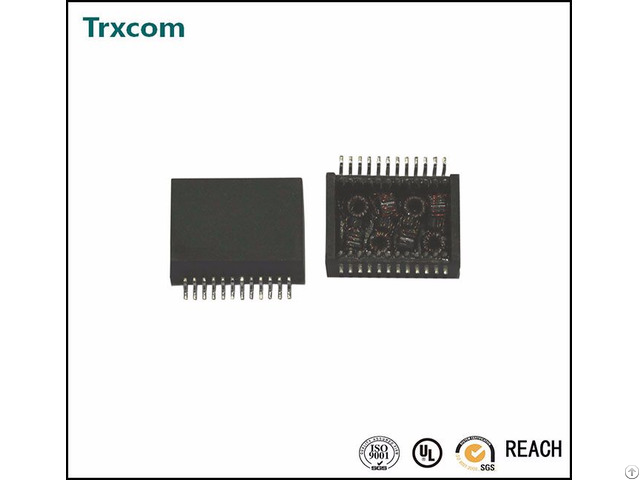

Trxcom p/n TRC1102NL = Pulse p/n H1102NL

Speed: 100Base-TX

Package: SMT

Number of Ports: Single

Application-Lan: Ethernet (Non-PoE)

Package Height: 5.994mm

Temperature: 0 to 70

UL, RoHs, Reach, ISO9001: 2008

1 - Designed to support application, such as SOHO (ADSL modems), Lan-on-Motherboard(LOM), hub and switches.

2 - Meets IEEE 802.3 specification.

3 - Maximum reflow temperature is 250℃, 5 Sec.

4 - UL certification: File Number E321120

ELECTRICAL APECIFICATIONS @25℃

1 - Turn Ratio(±3%)

TX=1CT: 1CT RX=1CT: 1CT

2 - Inductance OCL:

350uH MIN @ 100KHz 0.1V 8mA DC Bias

3 - Insertion Loss:

-1.1 dB MAX @ 1-100MHz

4 - Return Loss:

- 16dB MIN @ 1-30MHz

- 12dB MIN @ 30-60MHz

- 10dB MIN @ 60-100MHz

5 - Cross talk:

- 40dB MIN @ 1-30MHz

- 35dB MIN @ 30- 60MHz

- 30dB MIN @ 60-100MHz

6 - Common Mode Rejection:

- 30dB MIN @ 1-100MHz

- 20dB MIN @ 50-150MHz

7 - Hipot Test: 1500Vrms

8 - Operation Temperature Range: 0 ℃ TO 70℃

REMARK:

1 - Preheat:

Temperature(Ta-Tb): 150-200℃

Time(T1-T2): 60-180s

2 - Holding Temperature: 217℃

Time(TL): 60-150s

3 - Max Temperature(Tp): 250(+0/-5℃)

Max Time(Tp): 30s

4 - The average speed: 3℃/S Max

The avergae cooling speed: 6℃/S Max

5 - From 25℃ to Products out of the furnace: 6 minutes Max
