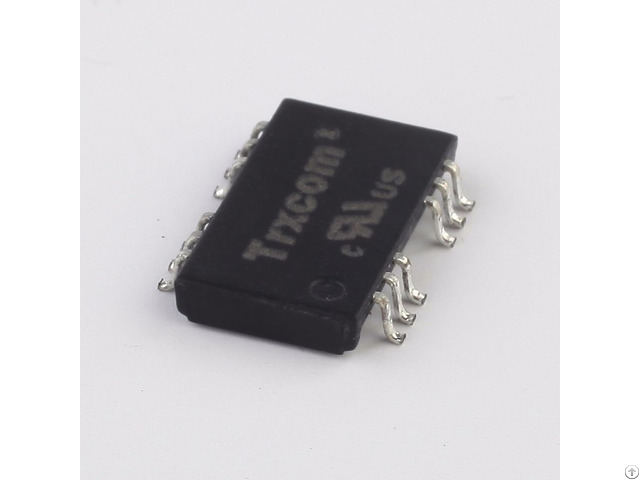

100m Pc Card Lan Magnetic Modules Trc41604nl - China
price: 0.32 Dollar US$
Speed: 10/100Base-TX
Number of Ports: Single
Package: Low Profile
Isolation Voltage: 1500Vrms
Temperature: 0 TO 70
UL, RoHs, Reach, ISO9001: 2008
Free sample supported for testing
1 - Designed to support application, such as SOHO (ADSL modems), Lan-on-Motherboard(LOM), hub and switches.
2 - With various Turns Ratios.
3 - RoHs "NL" peak solder rating 255±5℃.
4 - UL certification: File Number E321120
ELECTRICAL APECIFICATIONS @25℃
1 - Turn Ratio(±3%)
TX=1CT: 1CT RX=1CT: 1CT
2 - Inductance OCL:
350uH MIN @ 100KHz 0.1V
3 - Insertion Loss:
0.1-100MHz: -1.1dB MAX
4 - Return Loss:
30mhZ: -20
60mhZ: -14
80mhZ: -11.5
5 - Cross talk(dB TYP):
30MHz: -45
60MHz: -40
100MHz: -35
6 - Differential to common Mode Rejection(dB TYP):
30MHz: -42
50MHz: -37
100MHz: -33
7 - Hipot Test: 1500Vrms
8 - Operation Temperature Range: 0 ℃ TO 70℃
REMARK:
1 - Preheat:
Temperature(Ta-Tb): 150-200℃
Time(T1-T2): 60-180s
2 - Holding Temperature: 217℃
Time(TL): 60-150s
3 - Max Temperature(Tp): 250(+0/-5℃)
Max Time(Tp): 30s
4 - The average speed: 3℃/S Max
The avergae cooling speed: 6℃/S Max
5 - From 25℃ to Products out of the furnace: 6 minutes Max
Company Contact:
- Posted By: Shenzhen Trxcom Electronics Co.,Ltd
- Phone: 86--13554918626
- Address: 4/F,3 BLDG,No.3 Industrial Zone,Minzhi Villiage,Longhua Town,, shenzhen , Guangdong , China
- Email:
Published date: August 23, 2016
- Business Description: Trxcom is the leading manufacturer of RJ45 connector with magnetic, Lan Transformer, Audio transformer.
The products are widely used in networking and communication equipments such as HUB, PC card, Switch, Route, PC Mainboard, SDH, PDH, IP Phone, Xdsl Modem.
1) 10/100/1000M LAN pulse transformer and filter
2) RJ45 connector with 10/100/1000M magnetic
3) T1/E1, T3/DS3/E3 - STS-1 interface line transformer
4) ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
