100m Pc Card Lan Magnetic Modules Trc2019nle - China
price: 0.35 Dollar US$
10/100Base-T Magnetic
PC Card Lan Transformer
Single Port with 16Pin
Low Profile Package
Isolation Voltage: 1500Vrms
Temperature: 0 TO 70 ℃
UL, RoHs, Reach, ISO9001: 2008
Free sample supported for testing
1 - Designed to support application, such as SOHO (ADSL modems), Lan-on-Motherboard(LOM), hub and switches.
2 - Meets IEEE 802.3 specification.
3 - Maximum reflow temperature is 260℃, 5 Sec.
4 - UL certification: File Number E321120
ELECTRICAL SPECIFICATION @25℃
1 - Turn Ratio: ±3%
TX= 1CT: 1CT RX= 1CT: 1CT
2 - Inductance OCL:
350uH Min @ 100KHz 0.1V 8mA DC Bias
3 - Insertion Loss:
1-100MHz: -1.4dB MAX
4 - Return Loss(dB MIN)
1-30MHz: -18
30-60MHz: -16
60-100MHz: -12
5 - Cross Talk(dB Min)
1-30MHz: -45
30-60MHz: -40
60-100MHz: -35
8 - DCMR(dB MIN)
1-50MHz: -30 50-150MHz: -20
9 - Hi-Pot: 1500Vrms
10 - Operation Temperature Range: 0 TO 70 ℃
Company Contact:
- Posted By: Shenzhen Trxcom Electronics Co.,Ltd
- Phone: 86--13554918626
- Address: 4/F,3 BLDG,No.3 Industrial Zone,Minzhi Villiage,Longhua Town,, shenzhen , Guangdong , China
- Email:
Published date: August 23, 2016
- Business Description: Trxcom is the leading manufacturer of RJ45 connector with magnetic, Lan Transformer, Audio transformer.
The products are widely used in networking and communication equipments such as HUB, PC card, Switch, Route, PC Mainboard, SDH, PDH, IP Phone, Xdsl Modem.
1) 10/100/1000M LAN pulse transformer and filter
2) RJ45 connector with 10/100/1000M magnetic
3) T1/E1, T3/DS3/E3 - STS-1 interface line transformer
4) ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Related listings
-
Gigabit Transformer Modules With Power Over Ethernet Option Trc6062anlAudio Electronics - Connectors / Cables - Shenzhen Trxcom Electronics Co.,Ltd - China - August 23, 2016 - 0.45 Dollar US$Gigabit Transformer Modules Single Port 24pin Soic with PoE option Isolation Voltage: 1500Vrms Temperature: 0 TO 70 UL, RoHs, Reach, ISO9001:2008 Free sample supported for testing 1. Designed to support application, such as SOHO (ADSL modems), Lan-on...
-

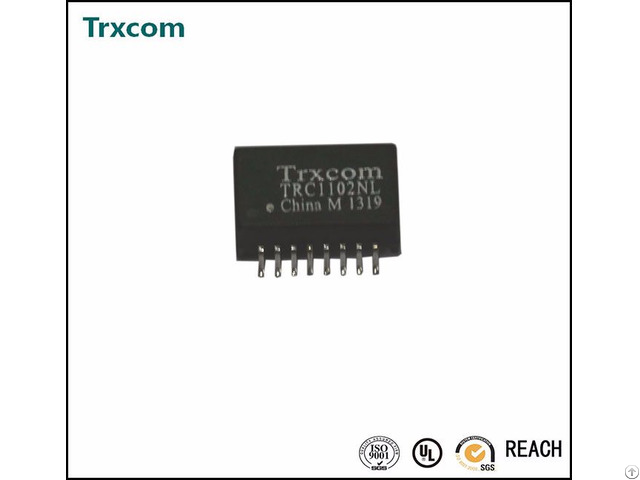

100m Single Port Transformer Modules Trc1102nlAudio Electronics - Connectors / Cables - Shenzhen Trxcom Electronics Co.,Ltd - China - August 23, 2016 - 0.25 Dollar US$Trxcom p/n TRC1102NL = Pulse p/n H1102NL Speed: 100Base-TX Package: SMT Number of Ports: Single Application-Lan: Ethernet (Non-PoE) Package Height: 5.994mm Temperature: 0 to 70 UL, RoHs, Reach, ISO9001:2008 1. Designed to support application, such as...
-
