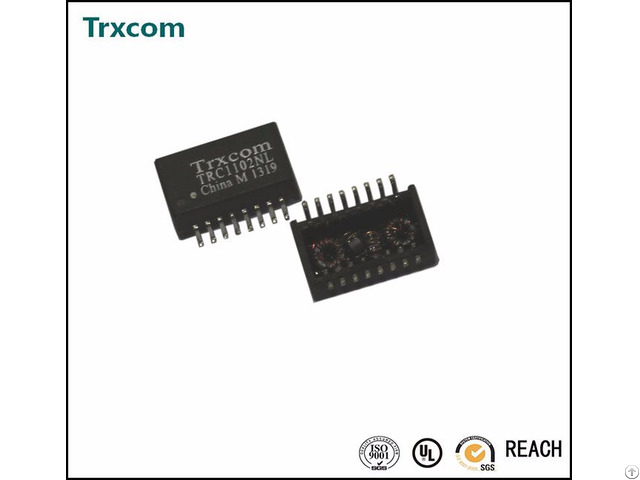

100base T Single Port Transformer Modular Trc1188nl Alternative To Bothhand - China
price: 0.40 Dollar US$
Trc1188nl=s558-5999-u7-f
10/100base-t lan
single port with 16 pins
surface mount type
with various turn ratios
isolation voltage: 1500vrms
temperature: 0 to 70 ℃
ul, rohs, reach, iso9001: 2008
free sample available for testing
1 - designed to support application, such as soho (adsl modems), lan-on-motherboard(lom), hub and switches.
2 - meets ieee 802.3 specification.
3 - maximum reflow temperature is 260℃, 5 sec.
4 - ul certification: file number e321120
application-lan: ethernet (with/ without poe)
comment: same as nl version
configuration rx: t, c
configuration tx: t, c
construction: open frame
cores per port: 4
numbers of lines(chokes): 2
numbers of ports: single port
pcb: no pcb
package: smd
speed: 10/100base-tx
temperature: -40 to 85
turns ratio rx: 1ct: 1ct
turns ratio tx: 1ct: 1ct
Company Contact:
- Posted By: Shenzhen Trxcom Electronics Co.,Ltd
- Phone: 86--13554918626
- Address: 4/F,3 BLDG,No.3 Industrial Zone,Minzhi Villiage,Longhua Town,, shenzhen , Guangdong , China
- Email:
Published date: August 23, 2016
- Business Description: Trxcom is the leading manufacturer of RJ45 connector with magnetic, Lan Transformer, Audio transformer.
The products are widely used in networking and communication equipments such as HUB, PC card, Switch, Route, PC Mainboard, SDH, PDH, IP Phone, Xdsl Modem.
1) 10/100/1000M LAN pulse transformer and filter
2) RJ45 connector with 10/100/1000M magnetic
3) T1/E1, T3/DS3/E3 - STS-1 interface line transformer
4) ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
