915mhz 25kw Solid State Mw Generator Used For Microwave Heating Sintering Thawing - China

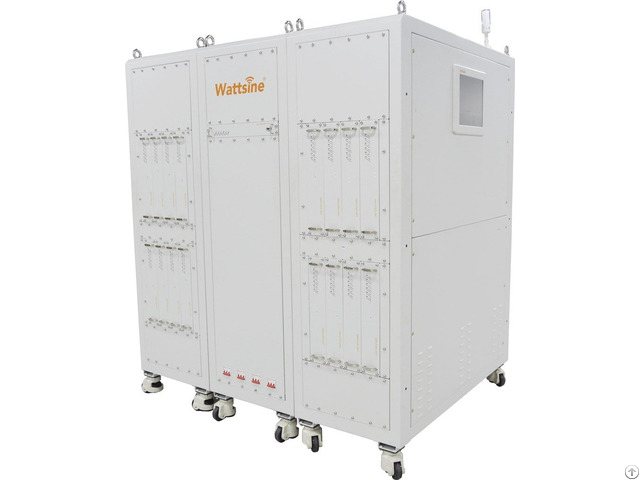

WSPS-915-25K-CEWA solid-state microwave power generator is a solid-state microwave energy device specialized in ISM field.

Provides up to 25kW of continuous or pulse power, and adjustable output power 200-20000W; PLL phase-locked loop technology, high frequency stability; built-in circulator and load, suitable for loads with different stationary wave ratios; has a complete protection circuit, ensure the reliable operation of the power generator.

Control Mode Remote communication control RS232\RS485\ Ethernet Local control: Touch LCD display Operation Mode CW Pulse CW and Pulse Cooling way Circulating water cooling Inlet water temperature: +5~+25℃ Water flow: 96L/MIN Functional characteristics Control: equipment working status and parameter setting, can view the working status information and configure the working parameters remotely; Alarm: output power, SWR, current, temperature, can view the alarm information remotely; Protection: over-VSWR, over-temperature, over-input power, over-current, over-voltage protection.

The system will shut off the RF output when under protection.

Interface definition Power input: line contact bank.

Three-phase five-wire 380V±10% AC+PE.

Power frequency 50Hz-60Hz RF output: BJ9(WR975) Control interface: DB9F/RJ45 Circulating water interface: 1" threaded joint Operation environment Environment temperature: 0℃~50℃ Relative humidity: ≤95% (no condensation at +25℃) Atmospheric pressure: 80kPa~106kPa Application range The core of all solid-state microwave devices, used in plasma excitation, MPT, engine microwave ignition, solid-state microwave ovens, thermal therapy apparatus, industrial heating, etc.
