Powertrains Section Training Bench Fr - China
price: 2718.00 Dollar US$
i.

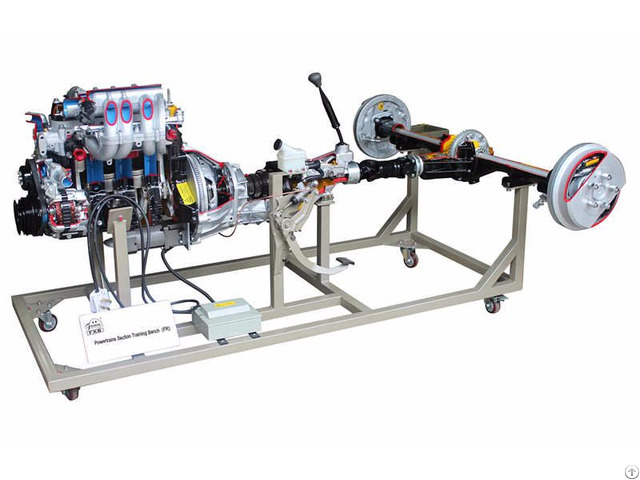

About The Product The device adopts the cross section of a Toyota Hiace's engine and transmission system to illustrate their internal structures.
It applies to the theoretical teaching and practice of the automobile engine and transmission system.
ii.
Features 1 - The device adopts the cross section of a Toyota Hiace's engine and transmission system to illustrate their internal structures.
2 - The engine will operate slowly driven by a three phase gear reduction motor, demonstrating the power transmission process from the engine to driving wheels.
3 - The driving part of the training bench is protected by a cover.
4 - The training bench offers trainees with engine and transmission system disassembly benchs iii.
Basic Parameter 1 - Dimensions: 1600mm x 1400mm x 1200mm (length x width x height) 2 - Driving power supply: Three-phase four-wire (three-phase five-wire 380±10% V 50Hz) 3 - Three-phase gear reduction sense motor ◆ Model: 5IK120GN-C ◆ Rated voltage: A.C. 220V/380V 50Hz ◆ Rated power: 120W ◆ Rated rotation speed: 50Hz 90/1400rpm 60Hz 90/1500rpm ◆ Reduction ratio: 30 4 - Operating temperature: -40℃ to +50℃
Company Contact:
- Posted By: FXB CO., LTD.
- Phone: 0086-0755-28077519
- Address: NO.5,ZHANGBEI INDUSTRIAL DISTRICT,ZHANGBEI RD.,AILIAN,LONGGANG AREA,SHENZHEN,P.R.CHINA, shenzhen , guangdong , China
- Email:
- Website: http://www.fxbgroup.cn
Published date: June 27, 2016
- Business Description: FXB was founded in 2003, committed to the development and production of automotive teaching aids products and software.
Settled in 13, 000 square meters, it equips full equipment of modern industrial production plant and the independent industrial park of integrated office supporting.
And our products have been sold to lots of countries and areas around the world.
