Jy Acls 400 Neonatal Emergency Training System - China

Features:

★ This sign indicates that the functions can be run only when the manikin is used with the optional accessories

Head and neck:

1 - Normal, dilated pupil;

2 - Airway management: realistic mouth, nose, tongue, gum, throat, esophagus, epiglottis, trachea, tracheal ring ; can practice tracheal intubation via mouth or nose, sputum suction; oxygen inhaling; may monitor airway intubation and umbilical vein catheterization, show correct and wrong intubation; there is prompt for wrong tracheal intubation; only right chest rise can be observed due to excessive intubation position;

3 - Gastric intubation: detect tube position via auscultation; inserting gastric tube for gastrointestinal decompression, nasal feeding, gastric lavage, etc.

Chest and abdomen:

1 - Pneumothorax puncture extraction, pleural effusion extraction training;

2 - Auscultation sound: include heart sound, breath sound, bowel sound, of which the normal heart sound and breath sound can be adjusted according to the monitor HR and respiratory rate;

3 - CPR training: Support multiple ventilation ways: mouth to mouth, mouth to nose, BVM to mouth; can monitor inflation times and frequency, compression time, frequency and depth; judge the ratio of artificial breathing and chest compression;

★ Real defibrillation and pacing: Achieve real defibrillation and pacing by using with real defibrillating pacer(prepared by user-self);

★ ECG monitoring: Be used with real ECG monitor (prepared by user-self) to realize ECG monitoring;

★ Simulative ECG monitoring should be used with multi-parameter simulation of ECG to achieve the function of monitoring ECG.

★ Simulate defibrillation and pacing: should be used with simulative defibrillating pacer; can choose defibrillation energy, the max energy is 360J;

Limbs:

1 - Venous transfusion/puncture, arm veins include and Scalp vein includes.

2 - Umbilical care: Practice ligature of umbilical cord, umbilical vein catheterization;

3 - Bone marrow puncture: Effusion of simulative bone marrow prompts proper tibial puncture; can inject into drugs and practice transfusion;

4 - BP measurement training

Software:

1 - Vital signs monitoring: spontaneous breath; simulate femoral artery, umbilical artery pulse; heart rate, cardiac rhythm, crying, hiccupping, BP, saturation of blood oxygen, ABP, mixed cyanosis, central cyanosis, peripheral cyanosis, amniotic fluid, muscular tension, convulsion, reflection, spontaneous movement and general paralysis; can perform Apgar score;

2 - ECG, emergency scenes and cases are available in the system;

3 - Neonatal ACLS emergency script editor is used to edit neonatal emergency cases and simulate emergency scenes;

4 - Neonatal ACLS emergency script training software

5 - Perform PETCO2: confirm tracheal intubation position and monitor the effectiveness of resuscitation operation

Standard components:

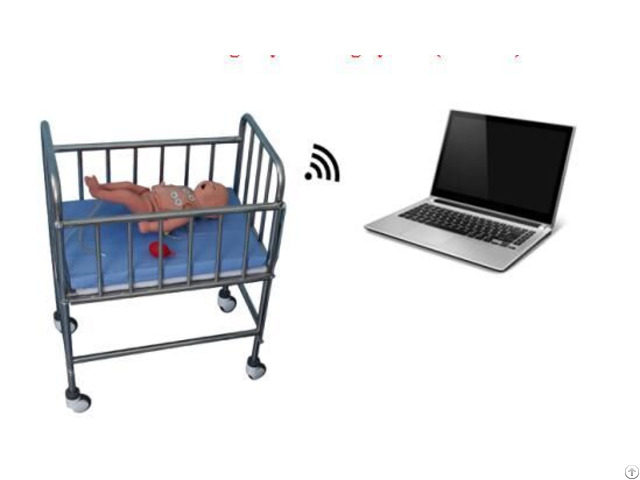

1 - Intelligent ACLS Neonate Manikin

2 - BP Training Equipment

3 - Heart and Lung Auscultation Simulator Set

4 - ECG Generator

5 - Defibrillator Converter

6 - BVM, Stethoscope, Laryngoscope, Tracheotomy tube, Infusion set.

7 - Emergency System Controller

8 - Medical Air Compressor

Optional accessories:

1 - Video monitoring equipment

2 - Computer

3 - Computer control console

4 - Stainless steel control console

5 - Rescue operation station
