Electric Vehicle Cutaway - China

Brief introduction

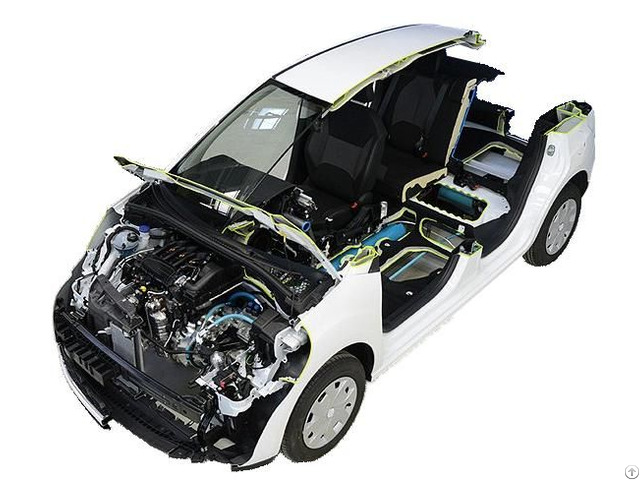

This training model is cutaway for understanding the structure and work principle of a electric car.

all of high pressure safety system, driving motor integrated system, battery characteristics integrated system, braking system, electric power steering control system, electric air-conditioning system, charging system are cutaway to make students more intuitively understanding of the structure of electric vehicle system composition and working principle.

Product structure and composition

1 - Testing of the electric car

2 - Electric vehicle high pressure safety system

3 - Electric vehicle drive motor integrated system

4 - Battery characteristics integrated system

5 - Electric vehicle braking system

6 - Electric power steering control system

7 - Electric vehicle charging system.

Technical parameters :

Vehicle brand : Zhongtai auto, model : Cloud 100

Motor: pure electric 24 HP

Gearbox: single speed gearbox

Length * width * height (mm): 3559*1620*1476

Body structure: 5 door 5 seats, Front wheel (mm): 1405

Rear wheel (mm): 1400

Motor type: AC / asynchronous

Total motor power (kW): 18

Total motor torque (N*M): 120

Maximum power of front motor (kW): 18

Maximum torque of front motor (N*m): 120

Battery type: lithium ion battery

MIIT mileage (km): 155

Battery capacity (kWh): 18

Power consumption per hundred kilometers (kWh/100km): 10

Battery charging time: fast charging 1.5 hours, slow charging for 8 hours

Fast charge (%): 80

Transmission type: fixed gear ratio gearbox

Drive mode: Front

Front suspension type: Mcpherson independent suspension

Rear suspension type: trailing arm type independent suspension

Power type: electric power

Front brake type: ventilated disc

Rear brake: drum type

Parking brake: brake type

Front tire specification: 165/60 R14

Rear tire specification: 165/60 R14

Specification: full size spare tire
