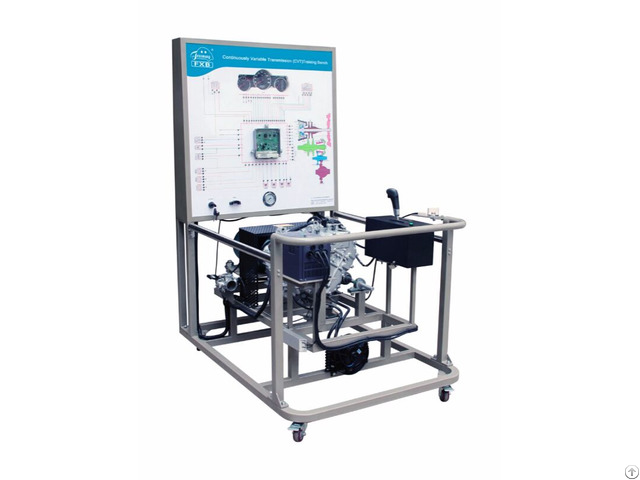

About The Product Powered by an adjustable speed three phase induction engine, the device is designed based on the Honda CVT electronicallycontrolled CVT to illustrate the position, start up in neutral, drive shift and reverse gear.

It can illustrate the structure and working principle of electronically-controlled CVT; the device applies to automobile transmission and maintenance training courses of secondary and senior vocational schools, ordinary education and training institutions.

ii.

Features 1 - Real and operable electronically-controlled CVT, driven by an adjustable speed three phase induction engine, to illustrate the position, start up in neutral, drive shift and reverse gear, and illustrate the structure and working process of CVT.

2 - Through rated largest current on the engine label plate of the transmission, it uses electronic heat overload relay to prevent the engine from overload.

To prevent mechanical device startup/impacts when the engine is switched off, it can realize progressive speedup/slowdown by making proper settings on the CVT.

3 - The training bench is made of advanced aluminum-plastic plate with characteristics of not less than 4mm thick, corrosion resistance, impact resistance, pollution resistance, fireproof, and moistureproof.

Its surface are processed by special craft and spraying primer.

Never fade color circuit diagram and working principal diagram are painted on the board whose surface coating with varnish.

The trainees can learn and analyze the working principle of the control system by referencing the diagram and the real object.

4 - Detection terminals are installed on the training bench.

On the bench, operators can detect various detectors, executors, electrical signals of control unit pins, such as resistance, voltage, current, frequency, and waveform signals.

5 - The training bench is installed with dashboard to illustrate changes of parameters including the engine speed and driving speed.

6 - The training bench is installed with diagnosis socket, which can connect to automobile decoder to read fault codes, clears fault codes, and reads data stream from the CVT electrical control system.

7 - The training bench is installed with electromagnetic valve indicator lights of the CVT to illustrate working conditions of electromagnetic valves.

8 - The training bench is installed with master power switch, protectors for the engine, output shaft and other components.

9 - The training bench's base frame is made in steel and the surface is paint-coated.

Self-retention wheels are installed to ensure that the bench is flexible, reliable and endurable.

10 - Equipped with intelligent fault setting and appraisal system, include fault setting, troubleshooting and assessment functions etc.

iii.

Basic Parameter 1 - Size: 1600mm x 1000mm x 1800mm (length x width x height) 2 - Driving power supply: three phase four wire (three phase five wire 380V ± 10% 50Hz) 3 - Input power: A.C. 220V ± 10% 50Hz 4 - Operating power supply: 12V DC 5 - Three-phase asynchronous motor: ◆ Model: YT 112M-2 ◆ voltage: AC 380V/660V ◆ Current: 8.2A/4.7A ◆ Power: 4KW ◆ Rotation speed: 2880r/min 6 - Transmission: ◆ Model: CHE100-004G/5R5P-4 ◆ Power: 4KW/5.5KW ◆ Input: AC 3PH 380V ± 15% ◆ Output: 9A/13A AC3PH 0 - 380V 0 - 400Hz 7 - Operating temperature: -40℃ to +50℃
