Auto Air Conditioning Training Bench Vocational Education Teaching Test Equipment - China

Product description:

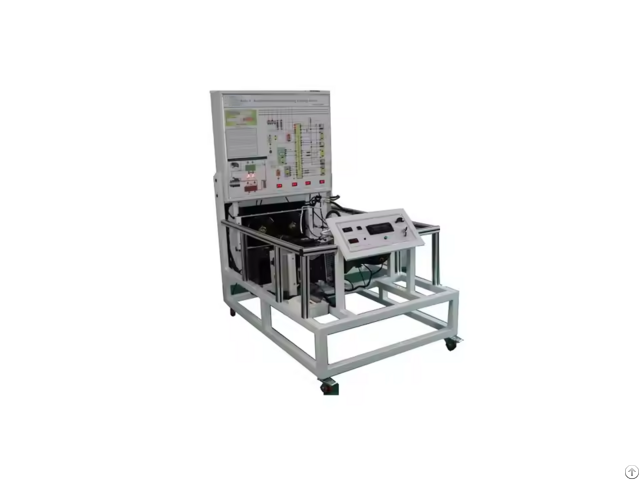

The auto air conditioning training bench adopts original auto air conditioning system and uses motor to simulate the engine drive the air conditioning system.

The automotive training equipment automobile air conditioning teaching equipment can really show the structure and working principle of the auto air conditioning system.

The automotive training equipment is suitable for the teaching and skills training of air conditioning system in higher vocational colleges and secondary vocational colleges.

This automotive training bench can meet the teaching needs of the structural composition, working principle, fault setting, and diagnosis of air conditioning system.

Techincal parameter:

1 - Dimensions: about 1000x1600x1800mm

2 - Power supply: AC 220V/380V, 50Hz, DC12V

3 - Refrigerant: R134a

4 - Refrigerant pressure: low pressure: 0.15-0.35Mpa; high pressure: 1.5-2.0Mpa Main composition:

air conditioning assembly, Mobile stand.

Function features:

1 - The measuring panel of the bench is painted with color inkjet circuit diagram, made of 8mm thick high-strength acrylic plate inkjet, with large temperature resistance, wear-resisting, moisture-proof, anti-corrosion, not easy to deformation, long service life, bright color, not easy to fade and other characteristics.

2 - The operation panel of the training bench is equipped with air conditioning operation panel and temperature display, which can change the indoor temperature and outdoor temperature in real time.

3 - Test terminals are installed on the panel of the training bench, and the electrical signals of each sensor, actuator and transmission control unit pin, such as resistance, voltage, current and frequency signals, can be directly detected on the panel.

4 - The training bench are characterized by light quality, high strength, corrosion resistance and long service life.

Without spraying process, it is more environmentally friendly and has a more beautiful and high-grade appearance.

Training objectives:

1 - Function introduction of main components of the auto air conditioning system.

2 - Demonstration of the work principle and process of the auto air conditioning system.

3 - Measurement of the signals of the sensors and actuators by multimeter or oscilloscope.

4 - Practical exercise of vacuum pumping, refrigerant filling, refrigerant leak detection, etc.

5 - Fault set and troubleshooting.

Vehicle model:

Provide OEM service
