Electric Vehicle Charging Training Bench Ev Simulator School Train Education Equipment - China

Product description：

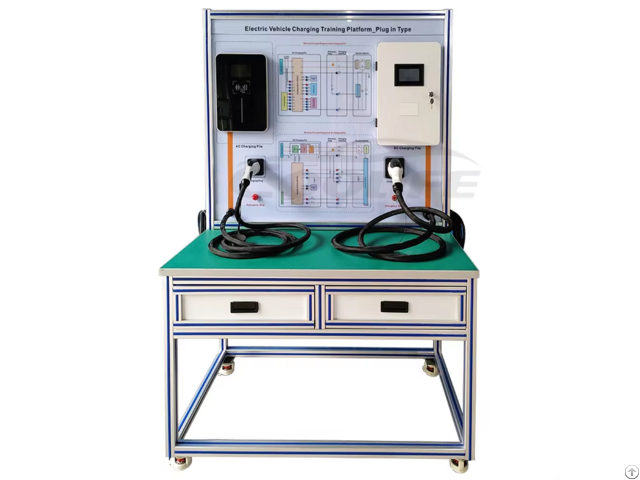

The Electric Vehicle Charging Training Platform_Plug-In is specifically designed to simulate the charging process of electric vehicles, providing a detailed demonstration and analysis of the key technologies and data involved in the charging process.

Techincal parameter：

Dimensions: 980mm x 660mm x 1400mm

Input Voltage: Single phase 220±10Vac

Rated Current: 16A

Rated Input Power: 3.6KW

Maximum Allowed Output Voltage: 600V Main composition：

The training platform includes key components like a three-phase AC charging pile, onboard charger, CC/CP handshake module, andprotection module, demonstrating the rectification principle and charging signal interaction during the charging process.

Function features：

1 - Capable of extracting and analyzing key signals during the charging process, such as sensor signals, voltage, and current sampling signals.

2 - Users can observe signal amplitude, frequency characteristics, and their changes intuitively using an oscilloscope or multimeter.

3 - Equipped with a comprehensive protection module to ensure safety during the training process.

Training objectives：

1 - Enable students to understand the composition and charging principles of electric vehicle charging systems.

2 - Learn the current control process and charging control strategy of the charging system.

3 - Understand the signal interaction and connection process during charging, enhancing practical operation skills in electric vehicle charging technology.
