Electrical Hoisting Bitumen Drum Melter Large Capacity For Road Construction - China

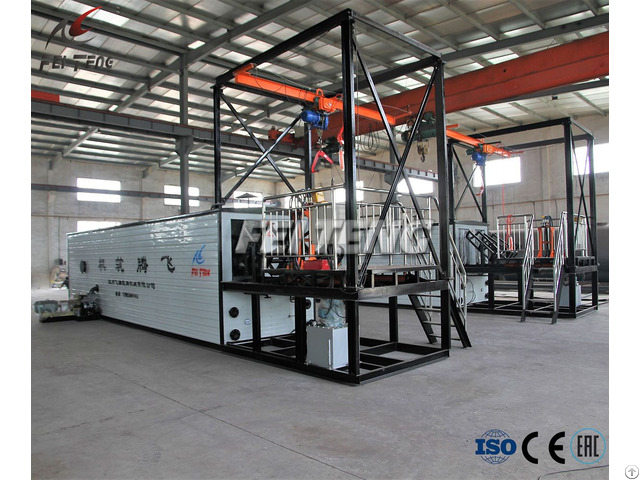

Patent Drum Turnover Device Bitumen Drum Decanter For Road Construction Description Drummed asphalt melter is composed of bitumen melting tank, lifting device, tipping device, hydraulic propelling system, heat transfer oil heating system, bitumen pump and pipeline, liquid level warning system and electric control system, etc.

Drummed asphalt melter lifting device adopt suspension structure, which lift the bitumen barrel with electric hoist and load it onto the tipping device.

The tipping device then turn over the bitumen barrel bottom up on the rails pallet, and the hydraulic propelling system will push it into up tank.

All the mentioned actions are operated on the integrated electric controller.

The melting tank looks like a container, its chamber is consist of upper half and bottom half.

The upper half is applied to heat up bitumen drums with heat transfer oil coils, and make asphalt outflow from the drums.

Hydraulic propelling system push the barreled bitumen into tank via two rails, the newly entered barrel pushed empty barrel out from the other end.

The bottom half is a storage tank with heat transfer oil coil for heating and storing hot bitumen.

Finally pump the bitumen into another storage thank or application machine when bitumen temperature arrive 110 degree.

Bitumen drum melter components The equipment mainly consists of melting tank, lifting system, tipping devices, asphalt drum plate, dripping asphalt collect system, hydraulic propulsion system, thermal oil heating system, bitumen pump, pipe system, and electric control system.

Working principle The equipment adopts automatic spring door sealed box structure.

The drum is lifted by electrical hoisting.

The hydraulic propeller pushes drum plate into the melter, and using the hot thermal oil from external boiler as the heating source.

Continuous production one full drum in and one empty drum out from the other end.
