Mgo Board Acoustic Baffles Stainless Steel Decorative Wall Covering Sheets - China

Product introduction:

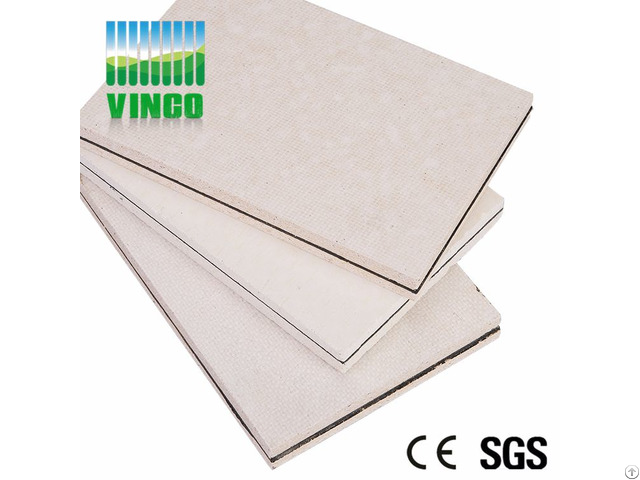

Product name: MGO board sheets acoustic baffles

Material: Magnesium board

Size: 1220*2440mm or can be customized

Thickness: 14/16/18mm

Color: White

Feature: Soundproof, Fireproof

Shape: Sheet

Features:

Environmental: E1 grade (people can touch the products directly)

Fireproof: A grade (the highest level)

Soundproofing: average 37 dB/decibel (high frequency soundproofing effect can be above 48 dB)

Theory:

There are amounts of micro connected pores in the materials, and through the pores acoustic waves go deep into the materials and convert the acoustic energy to heat energy

B.

The walls construction

(1)Clear the walls and install the wood keel, the gap between the keels is 600mm (to avoid rigid contact, bundle insulation blankets to the keel internal)

(2) Filled with environmental sound-absorbing cotton fiber among the keels

(3) Pave insulation blanket, and then the damping insulation board, (compound the insulation blanket and the board first with glue, the blanket is bigger than the board, use self-tapping screws tail the compound to the keel)

C.

Ground installation

(1) Clear up the ground, make sure the ground is flat

(2) Paves the damping insulation board to the ground).

Sealing the gaps among the insulation boards and between the board and floor with the special construction sealants.

(3) Pave a layer of 5-11mm soundproofing damping pad to the insulation board, than a layer of 40mm coagulation cement, (make the joint of soundproofing damping pad well sealed with transparent adhesive or lap each other about 20mm to prevent the sound transmission created by cement flow.

sound-proof anti-shock pad should be folded up at 90 degrees at least 40mm higher than the cement at the area where it is contacted with the walls to avoid sound transmission.

Packing & Shipping:

Packing: poly bag

Shipping: ocean transportation
