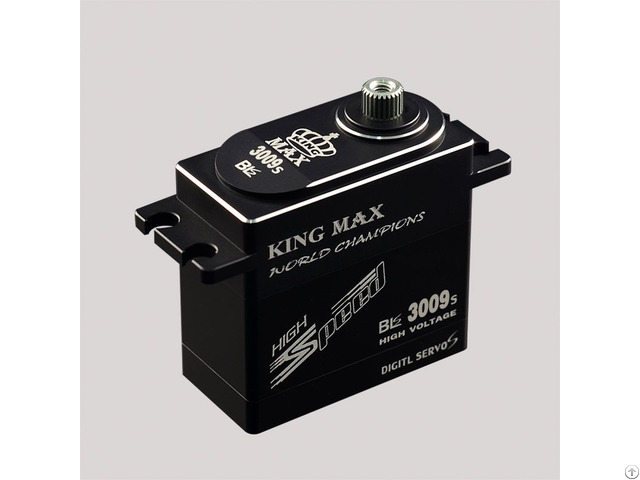

Kingmax Bls3009s High Precision Metal Gears Digital Brushless Standard Servo - China

FEATURE:

-- High performance, programmable digital high voltage standard servo

-- High-precision metal gears with hard anodizing

-- Full CNC aluminium hulls and structure

-- High quality brushless motor

-- Dual ball bearings

-- Waterproof

SPECIFICATIONS:

Dead band: 2μs default

Working frequence: 1520μs / 330hz

Operating Voltage: DC6.0~8.4 V

Operating Speed (6.0V): 0.11sec/60 degrees

Operating Speed (7.4V): 0.09sec/60 degrees

Operating Speed (8.4V): 0.08sec/60 degrees

Stall Torque (6.0V): 26.8kg.

cm (372.25oz/in)

Stall Torque (7.4V): 30kg.

cm (416.7oz/in)

Stall Torque (8.4V): 34kg.

cm (472.26oz/in)

Dimensions: 40X20X40.9mm /1.56X0.78X1.6in

Weight: 78g (2.75oz)

Connector Wire Length: 300mm (11.8in)

Packing Detail:

Transparency plastic box size: 83.5mmx63.5mmx37.5mm weight: 130g

Carton box size: 43x26.5x20.5cm 100sets/1CTN Cross weight: 13.5kg

Optional Accessories:

1--servo arm bag

2--1set of gears, including gears, shafts and 2 ball bearings(not include motor gear)

Company Contact:

• Posted By: KINGMAX HOBBY.CO.LTD

• Phone: +86 0769 86866722

• Address: Chashan Town chashan inustrial park, Dongguan , Guangdong province, China

• Email:

• Website: http://www.kingmaxhobby.com

• Business Description: KINGMAX HOBBY Co., Limited was founded in Hong Kong in 2004, specialize in designing, manufacturing and selling high quality servos for RC models, UAV, robots and some related high-end electronic products.

  Adhering to the idea “people-oriented, quality-first; customer-oriented, continuous innovation”，great efforts have been made and weve gained much experience in product research, design and distribution channel.

  We accelerate the development of our products with the purpose of being the market leader of the industry.

  Meanwhile, Weve been released a series of digital servos into the overseas market with the advanced electronic technology, which makes better quality products with competitive price.

  After all these years of efforts, KINGMAX is considered to be a well-known company as the products were well sold at home and abroad, received great favor by the customers.

  KINGMAX is always pursuing for innovation and were keeping supplying high quality products to meet your satisfaction.

  However, were now hunting for the distributors and retailers as well as the OEM or ODM orders are all welcomed.

  Were committed to providing you the best products and the service ever.

  We feel great honor if we could establish a long-term and win-win cooperation.
