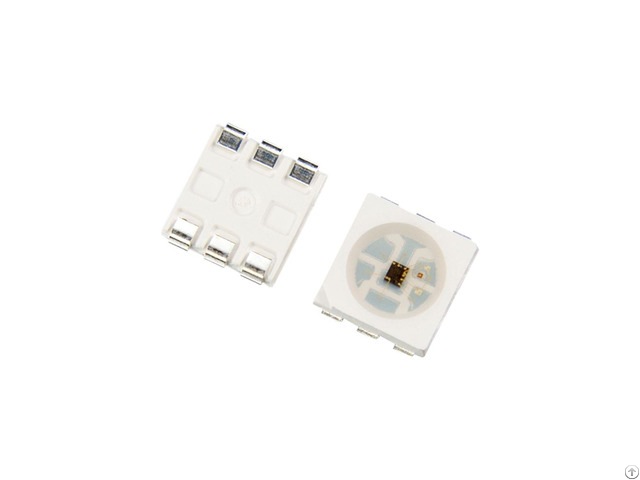

Sk9822 Clk Dat Double Line Pixel 5050 Rgb Smd Led - China
price: check with company for price
SK9822 5050 RGB LED is a 3ch integrated RGB SMD LED Working Voltage: DC5V
Size: 5.0*5.0*1.6mm
Signal: Double line signal transmission
clock and data is synchronized
Emitting Color: Digital RGB
Wattage: 0.3W
Current 20mA per chip, 60mA per LED.
Inside IC type: SK9822
Beam angle: 120 degree.
Feature:
● Top SMD internal integrated high quality external control line serial cascade constant current IC; 5V application; default on electric lights; ● Control circuit and the RGB chip in SMD 5050 components, to form a complete control of pixel, color mixing uniformity and consistency; ● The two-wire synchronous control.
●The three RGB output control, 8Bit (256) color; 5Bit (32) to adjust the brightness; ● The three constant current drive, self detection function specific signal ● The maximum frequency of 30MHZ serial data input ● The double data transmission, built-in support uninterrupted oscillation PWM output, can maintain a static image.
Company Contact:
- Posted By: Shenzhen LED Color Opto Electronic Co., LTD
- Phone: +86 13670216169
- Address: 5F, Da Dongming Science and Technology Park, Yuequn Road,Gongming Town,Guangming New District,Shenzh, SHENZHEN , China
- Email:
- Website: http://www.led-color.com
Published date: December 29, 2019
- Business Description: Shenzhen LED Color Opto Electronic Co., Ltd.was established in 2012, we are a LED company integrating R&D, production, sales and service.
Mainly engaged in the production of high-quality addressable LED chips and flexible LED lighting strips
