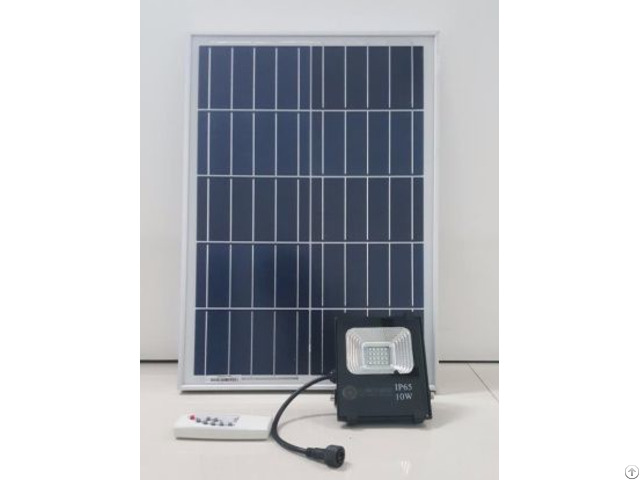

Made The Night Bright 10w Solar Photosensitive Induction Spotlight Floodlight - China

1．Product Description

2．Specifications

Model CQ-802-10

Power 10W

Solar panel 5W polycrystalline silicon

Solar panel size 280*190*18 mm

LED lamp 10W 2835 double chip patch

Lamp size 130*40*160 mm

Battery type 3.7V Lithium battery

Charging time 5-8 hours(optional)

Discharging time 7-8 hours(optional)

Material Die-cast aluminum+ glass

Working temperature -30℃-60℃

IP rating IP 66

Warranty 2 years 3．Feature

a.

The product uses a ternary lithium battery, which has a longer battery life and a larger capacity.

b.

The product adopts intelligent control lighting mode technology to automatically adjust the brightness to ensure sufficient time to light up.

5．Lamp installation and operating instructions: 1 - Fixing on the wall use screw in package, than adjust lamp cap for illumination angle and direction.

2 - Solar panel installed direct face sun, so it can get power form solar.

3 - Connect the lamp holder and the cable of solar panel, than open the lamp holder switch, finally the progress is complete.

The lamp into the auto function state said light-controlled.

The lamp charged solar power, the day turn off, the night turn on.

4 - Control the light and lighting time by the remote control which adapted to the lamp body.

6．Application

Suitable for households, villas, garden, construction site and remote areas etc.

7．Notice

1 - Solar panels installed away from lighting range of lam holder, and others light source, the panel installed position base on the night auto on as a good standard.

2 - Keep away from the fire, otherwise the battery may explode.

3 - Avoid hot, humid and corrosive environment, otherwise it will reduce the lifespan of the product.

4 - Once the products is not use more than 3 months.

Must be charged one time at least.

5 - Full power must direct face to sunlight conditions than can get highest power, besides different region, different season and different intensity will affect the lamp work time.

8．Company Information

About us

Guangdong Jiuzhou Solar Energy Science &Technology Co., Ltd. is a high-tech enterprise specializing in the integration of R & D, production, sales and after-sales service of solar PV application system.

The main products are solar PV power system, green electricity storage generator, solar LED street light, lithium-ion battery pack for energy storage, intelligent PV power supply system, all of which have been widely used in municipal transportation, new rural construction, coast defence, remote areas, tourism, navigation and other fields.

In order to optimize our company’s management and develop the production demonstration bases, Jiuzhou established Jiuzhou PV Energy Storage Academician Workstation with Peking University and Qin Guogang, the academician of Chinese Academy of Sciences.

We also co-constructed University-Industry-Insti tute Base with Zhongshan Torch Polytechnic, South China Normal University Optoelectronic Materials Research Institute, Guangdong Polytechnic Normal University and Jilin University.

Jiuzhou has passed the ISO9001, ISO 14001 and OHSAS 18001 authentication, was one of the companies who wrote the Safety Certification Rules for Lithium Ion Battery of Solar Street Lamps and The Acceptance Specification of PV and Building Integrated Power Generation System.

Furthermore, Jiuzhou obtained The Construction Enterprise Qualification Certificate.

Certifications Packing and shipping

Model CQ-802-10

Solar panel carton size 520*380*280 mm

Solar panel carton quantity 50 pcs

Light body carton size 675*310*350 mm

Light body carton quantity 50 pcs

Delivery time 15 to 30 days

Shipping FOB Zhongshan port

9．Payment term

T/T(FOB) 30% T/T in advance, paid the balance before shipment

L/C L/C amount above USD 50, 000, we can accept L/C at sight

Paypal/ Alipay Amount lower than USD 5, 000 10．FAQ

Q1 - How about the warranty?

A: We offer 2 years warranty, all product have been QC before shipping.

And during the warranty times, any quality problem, we will be fully responsible for it.

Q2 - Will the solar light working in rainy days?

A: Yes, the light have an intelligent control of lighting mode which could adjust the light by itself.

And it could last 2-3 days with a full power.

Q3 - How about the waterproof ?

A: All of our product have IP66 and can put outside.
