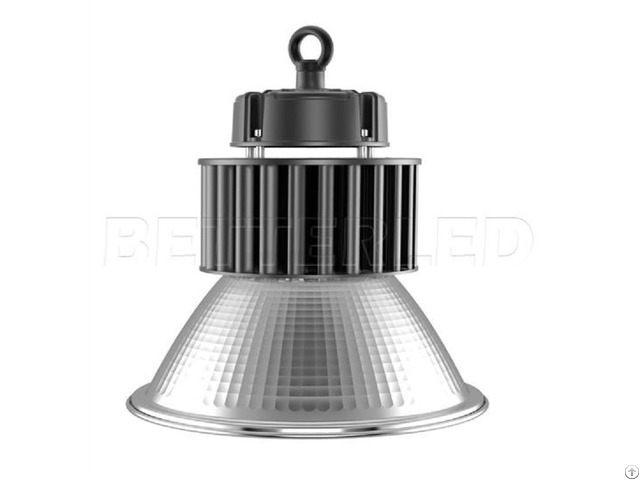

Flexible Led High Bay Light Distributor - China

Flexible LED High Bay Light Distributor Easy assemble and light weight

Stamping Process Aluminum housing with 3D Heat Sink

Copper heatpipe improves heat dissipation

Flexible installation

Watts scope: 60W~300W

Light efficiency: 130lm/w

CCT: 2700-6500K

Beam angle: 60°/90°/120° Die-casting aluminum heat sink and copper heatpipe improves heat dissipation.

High-purity aluminum reflector helps evenly distribute the lights and improve the lamp output efficiency.

60°/90°/120° Beam angle strictly according to your demand.

SMD LEDs with 130L/W light efficiency

CE driver, PF>0.95, Power efficiency>0.9.

Optional installations designed for different applications.

CE/RoHS approval and 5 years warranty.

Model LQ-ILL-60W LQ-ILL-100W LQ-ILL-150W LQ-ILL-200W

Power 60W 100W 150W 200W

LED Chip SMD SMD SMD SMD

Input voltage AC85~265V AC85~265V AC85~265V AC85~265V

Input Frequency 50HZ-60HZ 50HZ-60HZ 50HZ-60HZ 50HZ-60HZ

Luminous flux 130LM/W 130LM/W 130LM/W 130LM/W

Power factor(PF) >0.98 >0.98 >0.98 >0.98

Driver Efficiency >0.89 >0.89 >0.89 >0.89

THD <10% <10% <10% <10%

Color 2700K-6500K 2700K-6500K 2700K-6500K 2700K-6500K

CRI >80 >80 >80 >80

IP IP65 IP65 IP65 IP65

Working Temp.

-30℃~60℃ -30℃~60℃ -30℃~60℃ -30℃~60℃

Working Humidity 10~90%RH 10~90%RH 10~90%RH 10~90%RH

Beam Angle 60°/90°/120° 60°/90°/120° 60°/90°/120° 60°/90°/120°

Lifetime >50000H >50000H >50000H >50000H

Material Aluminum Aluminum Aluminum Aluminum

Certificate CE/RoHS CE/RoHS CE/RoHS CE/RoHS

Warranty 3/5 years 3/5 years 3/5 years 3/5 years

G.

W: 3.6kg/pc 4.0kg/pc 4.8kg/pc 5.4kg/pc
