Commercial Led Gimbal Cob Downlight - China

Commercial LED Gimbal COB Downlight with Junction Box 75lm/W, Ra>90, Dimmable, 5 years Warranty, CETL & ENERGY SATR

Cob Led Downlight

Cob Downlight

Key Features:

Type IC Rated: No housing Required.

Fast & Easy Installation: Save labor cost.

Junction Box Included: No additional hardware required.

CRI 90: True color rendering is for option .

ETL-listed: reliable quality and safe operation.

Energy Star certification.

Description:

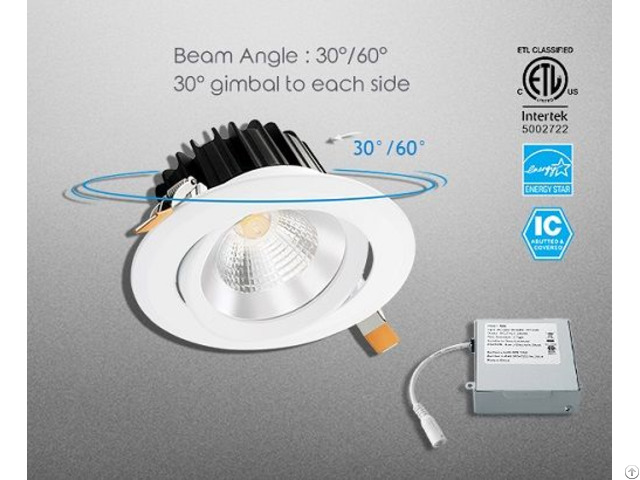

Goldsuno's Commercial series adjustable gimbal lighting fixture can aimed downward on sloped ceilings or directed onto any area or artwork that you wish to highlight.

35 degree vertical tilting, 355 degree bidirectional rotation in the plane, you could adjust the light to aim at any direction you need.

It is optimal for new construction and remodel for residential, office and hospitality applications.

Specification:

Model Number Power Lumen EFF Lumen *2 Beam Angle Dimming Rated*3 IP (5, 000K) Life (L70) JXL-COB03-T09W-UDH 9W 75lm/W 800lm 30° Triac 45, 000h IP40

JXL-COB04-T15W-UDH 15W 80lm/W 1200lm 30° Triac 45, 000h IP40

Order information: For shortest lead times, configure product using standard options.

JXL-CH04-T10W-UDH 30K 80 MW Example：

Series CCT *1 CRI Finish JXL-CH04-T10W-UDH-30K80MW

Economic TM 30K: 3000K 80CRI MW: Matte white 4” LED flat Downlights 40K: 4000K MB: Matte black 50K: 5000K BN: Brushed nickle 60K: 6000K *1 Color temperatures conform to nominal CCTs as defined in ANSI Chromaticity Standard C78.377A.

*2 Lumen measurement compies with IES LM-79-08 testing procedures.

*3 L70 = 70% lumen maintenance (when light output drops below 70% of initial output).

Ambient luminaire temperatures specified.

Lumen maintenance calculations are based on lifetime prediction graphs supplied by LED source

manufacturers.

Calculations for white-light LED fixtures are based on measurements that comply with IES LM-80-08 testing procedures.

Company Contact:

• Posted By: Shenzhen Goldsuno Opto-electronic Techonology Co. Ltd

• Phone: 86-755-33955246

• Address: 311th, Runtang Industry zone, Guanlan , Longhua District, Shenzhen , guangdong , China

• Email:

• Website: https://www.goldsuno.com

• Business Description: Shenzhen Goldsuno Opto-electronic Techonology Co.

  Ltd is a high–tech enterprise integrating R& D, production and selling of LED indoor lighting products, with more than 20 R&D engineers engaged in structure and driver design.

  Goldsuno Opto-electronic vertical integrate industry chain.

  We have subordinate department: shell production, heat-dissipation design and manufacture; LED driver R&D and application; high transmittance, anti-glare PC cover and reflector design and manufacture; SMD automatic produce and assembly; aging testing etc.

  Since 2009, we have obtained 12 patent technologies.

  LED down light series were UL, TUV/CE, SAA, RoHS approved.

  We endeavor in providing customers with stable, high quality and competitive products.
