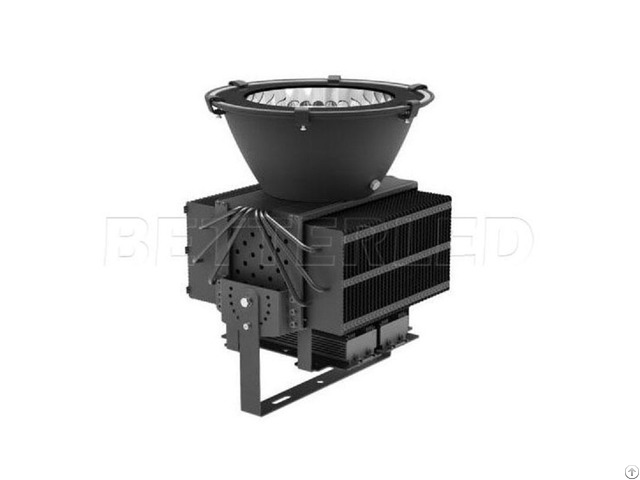

Ceiling Led Linear High Bay Light Order - China

LED High Bay Light, Ceiling LED Linear High Bay Light Order Easy assembling

Copper heatpipe improves heat dissipation

Flexible installation

Light efficiency: 130lm/w

CCT: 2700-6500K

Beam angle: 25°/45°/60°/90°/100°

Copper heatpipe improves 20% heat dissipation.

SMD LEDs with 130L/W light efficiency

CE driver, PF>0.98, Power efficiency>0.9.

Die-casting aluminum heat sink

Optional installations designed for different applications.

25°/45°/60°/90°/10 0° Beam angle according to your demand.

CE/RoHS approval and 5 years warranty.

IP65 LED high bay light for indoor and outdoor.

Application: Concert, workshops, Exhibition hall, Golf course

Model LQ-ILH-150W LQ-ILH-200W LQ-ILH-300W LQ-ILH-400W LQ-ILH-500W

Power 150W 200W 300W 400W 500W

LED Chip SMD SMD SMD SMD SMD

Input voltage AC85~265V AC85~265V AC85~265V AC85~265V AC85~265V

Input Frequency 50HZ-60HZ 50HZ-60HZ 50HZ-60HZ 50HZ-60HZ 50HZ-60HZ

Luminous flux 130LM/W 130LM/W 130LM/W 130LM/W 130LM/W

Power factor(PF) >0.98 >0.98 >0.98 >0.98 >0.98

Driver Efficiency >0.89 >0.89 >0.89 >0.89 >0.89

THD <10% <10% <10% <10% <10%

Color 2700K-6500K 2700K-6500K 2700K-6500K 2700K-6500K 2700K-6500K

CRI >80 >80 >80 >80 >80

IP IP65 IP65 IP65 IP65 IP65

Working Temp.

-30℃~60℃ -30℃~60℃ -30℃~60℃ -30℃~60℃ -30℃~60℃

Working Humidity 10~90%RH 10~90%RH 10~90%RH 10~90%RH 10~90%RH

Beam Angle 25/45/60/90/100° 25/45/60/90/100° 25/45/60/90/100° 25/45/60/90/100° 25/45/60/90/100°

Lifetime >50000H >50000H >50000H >50000H >50000H

Material Aluminum Aluminum Aluminum Aluminum Aluminum

Certificate CE/RoHS CE/RoHS CE/RoHS CE/RoHS CE/RoHS

Warranty 5 years 5 years 5 years 5 years 5 years

G.

W: 3.6kg/pc 4.0kg/pc 4.8kg/pc 5.4kg/pc 6.0kg/pc
