3pcs Flybacks Zr 130 150w Co2 Laser Power Device - China

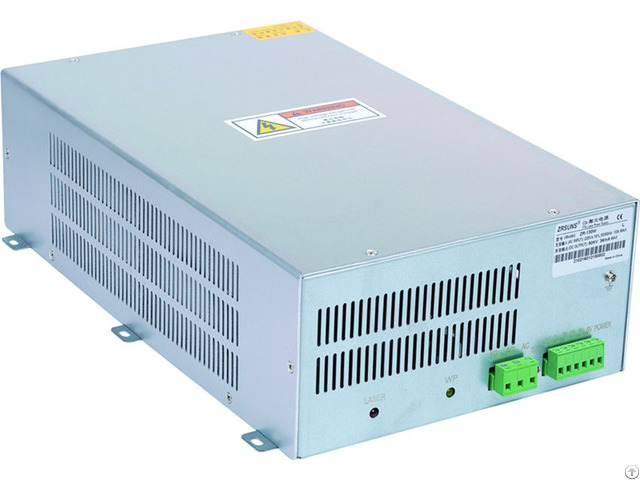

ZR-150watt co2 laser power supply

Feature:

1 - The 150W CO2 power source’s control is easy and simple.

It adopts high or low level control, the TTL-level control makes laser beam’s output start and stop quickly.

2 - This.

5V/PWM CO2 power source uses imported USA, Japan, German, France and Taiwan’s high quality components for major parts to avoid the error in future and strengthen lifetime.

The high voltage CO2 power source can be widely used to drive 2000mm or 1850mm CO2 laser tube.

3 - The 5V/PWM CO2 power source has excellent protection function.

The 150W CO2 power source has open circuit protection, which make this high voltage CO2 power source has short-term work in the open circuit status which avoid the laser tube burst due to the damage caused by 5V/PWM CO2 power source.

In this way it greatly enhancing the 150W CO2 power source’s service time.

4 - The 150W CO2 power source has stable laser output features.

Each 5V/PWM CO2 power source has been much more rigorous testing procedures, under full load high temperature (52~55 degrees Celsius) 24 hours of aging to ensure high stability of each high voltage CO2 power source.

5 - The 5V/PWM CO2 power source has LCD display module: (optional) .

Because of it, it do not need to open the outside case.

Operator can simply find ordinary code faults and output current at LCD display screen of 150W CO2 power source and easy remove the trouble.

Also the output current can be adjusted by potentiometer on the LCD module

6 - This high voltage CO2 power source uses ordinary H/L/P/G/IN/5V ports to accept laser power’s control signal and galvanized steel case.

7 - The high voltage CO2 power source has the protection switch.

Laser power control is simple, it can use 0-5V analog signal or PWM (pulse width modulation) signal to adjust and control laser power’s output.

8 - This 5V/PWM CO2 power source’s main advantage is high frequency, quick response speed, less volume, less weight, easy operation with complete protecting function.

Specification

Input Input voltage AC220V±10% (AC110V specified while order) AC frequency 47~440HZ Maximum input power 1000W Maximum input current 4.5A

Output Maximum output voltage 40KV Maximum output current 40mA

(depending on the laser tubes of different manufacturers)

Efficiency More than 90% (Full load)

Response speed Not more than 1ms

Control lnterace TTL multilevel switching control, effective level can be high and low selection (see control wining diagram)

Insulation lnput-output AC 1500V 1 minutes not more than 10mA lnput-shell AC 1500V 1 minutes not more than10mA Output-shell Connection

Open Circuit Protection Can be short circuit (requires a good grounding shell, while avoiding the positive electrode and the shell between the arc)

Environmental Requested Working temperature -10℃~50℃ Storage of temperature -20℃~75℃ Relative Humidity Maximum 85%RH (non-condensing) Altitude 100, 000 feet of work

200, 000 feet of storage, dose not work

Cooling methods Forced air cooling (fan cooling)

Dimensions (LxWxH) 350mmx221mmx105mm
