Infrared Sensor Led Tube For Corridor Lighting - China

KTL-T818W1200LR is KENKIO newest independently developed LED Tube.

With adjustable delay shut off time and power saving adjustment.

Through independent R & D we developed our own passive PIR Sensor utilizing, Japanese Nicera infrared sensor, Fresnel lens, and microcontroller unit (MCU).

This internal PIR Sensor have time delayed action, anti-interference, and more accurate sensing capability, detecting distance is 7 meters Selling Point:

1) Own Patents, Own Design

2) Two Adjuster: one for delaying time, other for lux, no need to change Control Board, no need to change the software to avoid error from software, production, clients also can change it by themself in the future by manual rotation.

3) Our delaying time is with 9 levels (from 5 seconds to 60 miniutes), but the max of normal radar tube is 2 miniutes, it is limit

4) our end cap can be rotated 180 degree, it is more easy to install different location to detect objective

5) our LED Tube already meet the standard of TUV.

Specification

Material : Aluminum + PC cover Color Temperature(K): 3000K-3500 K, 4000K-4500K, 5500K-6000K

Rated Voltage: AC100-240V, 50/60HZ

IP Rating: IP50

CRI: ≥80

Power Factor: >0.9

LED: LUMENMAX

Power: 18W

Length: 1200mm

Luminous Flux: 1800lm

Luminous Efficiency: 100lm/w (125lm/w is optional)

LED Driver: Isolated Driver with Rubycon Capacitor

Detecting Distance: 7 meters

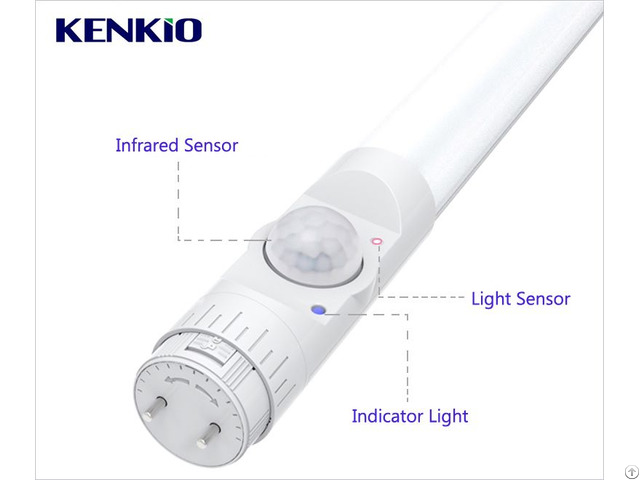

Infrared Sensor: Japanese Nicera infrared sensor, Fresnel lens, and microcontroller unit (MCU).

This internal PIR Sensor have time delayed action, anti-interference, and more accurate sensing capability wo Adjusters as below

1 - TIME: When user is away from detection zone, light tube will stay on based on the set time.

(5S, 30S, 1M, 3M, 5M, 10M, 20M, 30M, 60M).

2 - LUX: When user is away from detection zone, the power consumption of the tube will be reduced to the set amount.

(0, 10%, 20%, 30%, 40%) LED Tube end cap is rotatable 90 clockwise and counter clockwise.

This can accurately position the tube to the direction of the sensing and lighting area.
