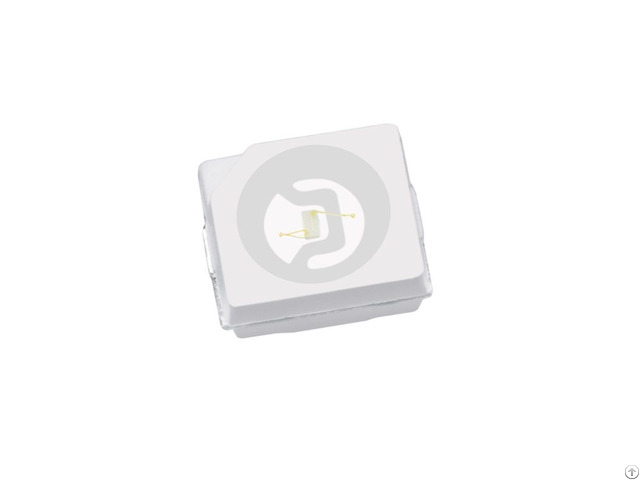

SMD 3528 UVA led series WAVELENGTH 360-400nm for UV Curing

health care High Power UV LED

Surface mount 3.5mm x 2.8mm x 1.9mm

· RoHS compliant

Product Description

curing High Power UV LED, photo catalyst & sensor lighting with Unique and perfect raw materials combination and strict reliability tests (eg: temperature shock test; high temperature aging test etc) ensures its stability and excellent performance in heat conduction and light output.

.

Surface mount 3.5mm x 2.8mm x 1.9mm

· Red copper base with high heat conductivity

· RoHS compliant

· > 30000Hrs

· Reflow soldering available

· Tape and reel packaging

High optical power UV Light Diode Application

Digital printing / label / lithography

Coating/glue/car paint curing

Glue curing

PCB exposure technology

Security detection

Medical use

Product Specification

Color Voltage (V) Current (mA) Wavelength (nm) Radiation Flux(mW) Part Number

UV 2.8-3.4 20 360-370 0.3-0.8 GT-M3528V1 2.8-3.4 20 370-380 0.3-0.8 GT-M3528V5 2.8-3.4 20 380-390 1-2 GT-M3528V2 2.8-3.4 20 390-400 1-2 GT-M3528V3
