Led Linear Light Ll Sm - China

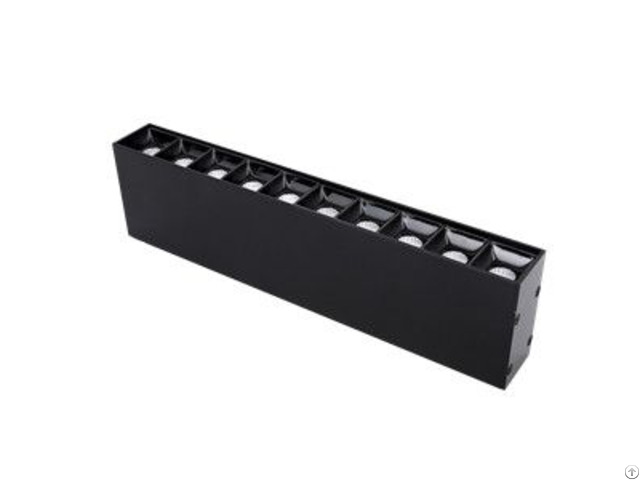

LED Linear Light LL-SM dimmable LED Linear Light Black LED Linear Light manufacturer

Model: JST-LL-SM

Wattage: 5W-45W

LED Chip: OSRAM3030/Philips3030

Driver Brand: OSRAM/Philips/Lifud

RA: ＞90

Finish Color: White/Black/Customized


Beam Angle: 15°/30°/45°

Length: 138mm-1200mm

Installation: Surface mounted/Suspend

Description

LED Linear Light Series the lamp body, in fashionable design, is made of 6063 section aluminum and PC reflector.

It is combined LED lighting with building harmoniously.

Creat a circle of light from a line of LED downlights, A narrow line of nano LED downlights for pure minimalism, three choices of beam angle 15°/30°/45°, Brilliant quality, more than 50, 000 hours life span.

Long lifespan LED Linear Light Advantages

1 - Connect freely, easy fixing

2 - 5 different types of corner connectors application

3 - End caps assembled by mechanical screws and magnet structure

4 - Ladder type structure design, convenient for disassemble

5 - Build-in 0-10V dimming function

6 - UGR＜19

Specification

Model Power CRI CCT PF Current Input Voltage Beam Angle Dimension

JST-LL-SM 5W >80/90 2700K-5000K >0.65 0.70A AC220-240V 15°/30°/45° L138*W33*H60mm

JST-LL-SM 10W >80/90 2700K-5000K >0.90 0.7A AC220-240V 15°/30°/45° L270*W33*H60mm

JST-LL-SM 20W >80/90 2700K-5000K >0.90 0.70A AC220-240V 15°/30°/45° L535*W33*H60mm

JST-LL-SM 30W >80/90 2700K-5000K >0.90 0.60A AC220-240V 15°/30°/45° L800*W33*H60mm

JST-LL-SM 40W >80/90 2700K-5000K >0.90 1.20A AC220-240V 15°/30°/45° L1000*W33*H60mm

JST-LL-SM 45W >80/90 2700K-5000K >0.90 1.30A AC220-240V 15°/30°/45° L1200*W33*H60mm

Application

Fashion stores, Stations, Hotels, Offices, Shopping malls, Clubs, Supermarkets etc.
