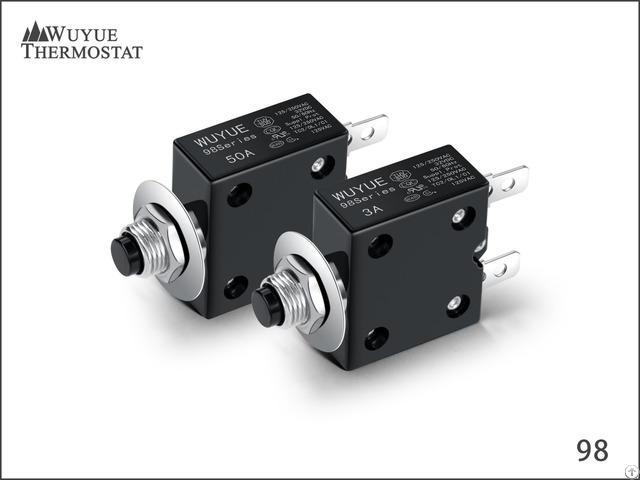

Overload Protector 98 Series - China
price: check with company for price
98 series overload protector YANGZHOU WUYUE ELECTRIC CO., LTD Lorena 008615366416606 Rated Current: 3A~50A Rated Voltage: 125/250VAC 50VDC 50~60HZ Open Capacity: 1000A*125VAC 20A*250VAC Hi-Pot test: 1500V/min Over Load Current: 10 times of rated current Min Voltage: ＜0.25V Reset time: in 60 seconds Insulation Resistance: ＞500VDC*100M Ω Terminal Temperature: 100% test under 25℃ Temperature Rise＜25℃ Life test: 125VAC*150% rated current, 500 cycles.
Test Standard(25℃) 100% rated current: No trip off 150% rated current: trip off in 1 hour 200% rated current: trip off in 40 seconds 300% rated current: trip off in 10 seconds
Company Contact:
- Posted By: Yangzhou Wuyue Electric Co.,Ltd
- Phone: +8615366416606
- Address: Building D, Software information industrial park,No 2 Huaijiang Avenue, Yangzhou , Jiangsu , China
- Email:
- Website: https://www.wuyuetech.com
Published date: June 26, 2019
- Business Description: We make and sell thermal protector, thermostat, temperature switch and overload protector to all over the world, which used in various of motors, engines, home appliances .
etc.
