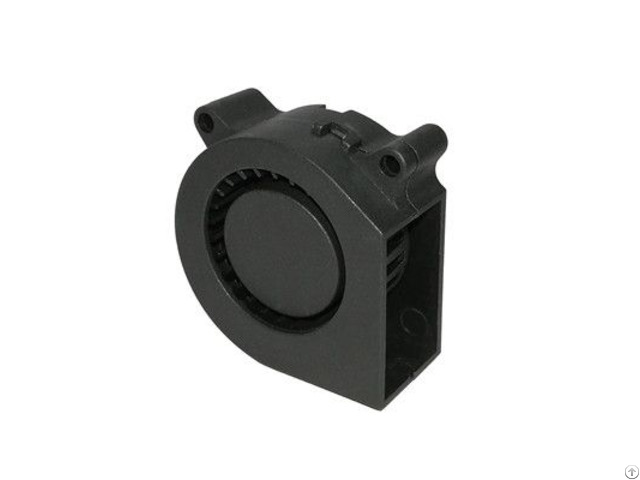

40x40x20mm Dc Blower 4020 - China

General Specification:

Size: 40X40X20mm

Rated Voltage: 5V/12V/24V

Operation Voltage: 4.5~5.5V/10.8~13 - 2V/21.6~26.4V

Rated Current: 0.10~0.25A/0.06~0 .

20A/0.06~0.15A

Speed: 4000~8000RPM/4200~8000RPM /5000~10000RPM

Air flow: 1.67~3.27CFM/1.69~3.27CFM /2.01~4.09CFM

Pressure: 2.56~11.69(mmH2O)/2.67~11 .

69(mmH2O)/3.93~19.26(mmH 2O)

Noise: 21.4~42.7dBA/22.3~42.7dBA /27.0~48.4dBA

Bearing System: Sleeve Bearing

Frame & Impeller: Thermal Plastic, UL 94V-0 Lead wires: UL Type; (+): Red (-): Black

Operation Temperature: -10℃~70℃, 35%~85%RH Storage Temperature: -40℃~70℃, 35%~85%RH

Weight: 22.3g Motor Protection:

Impedance Protected, Reverse Polarity Protected
