Tk Fh41 Hd Multi Viewer - China

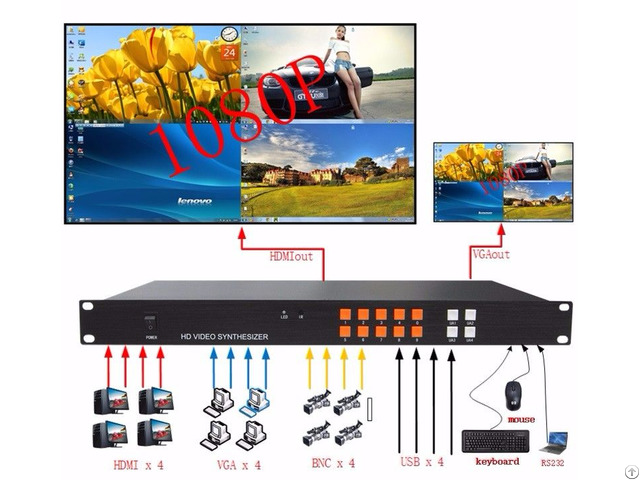

TK-FH41 HD Multi Viewer turn 4 BNC, VGA, HDMI input signal into 1 HDMI and VGA signal, which support resolution up to 1920*1080(all of the signal have no audio).

Main Function

1, Support single display unit display 4 HD or analog signal synchronously;

2, Support 4 composite video, 4VGA, 4 HDMI, 12 input signal in total;

3, Support 1 VGA and 1HDMI synchronic output;

4, 4 input USB signal, 2 output USB, and USB connect mouse and keyboard;

5, Support KVM function, that is USB, mouse, keyboard with video synchronous switch;

6, Compatibility all kinds of input resolution and support output ultrahigh resolution of 1920*1080;

7, Size and position of image can be adjust arbitrarily, and other functions, such as: windowing, superposition, roaming, PIP, POP;

8, Support regulatory image transparency, therefore you can see base picture though upper image;

9, Can be commonly used in any nation in the the world due to support ultra wide input alternating voltage of 90V to 264V ;

10, It's drawbench case is standard dimension of 19 cun 1U, so it can be put on normal equipment cabinet;

11, Can be controled by case key, IR, RS-232 serial port and center control;

12, High quality HD quad video multiplexers is especially customized generate for video engineering;



More detail about TK-FH41

1, Pure hardware construction

Adopt pure hardware construction, without CPU and memory, so booting only need 3 to 5 minutes, system stability, without crash, virus and system breakdown;can uninterrupted work for 24 hours a day of 365 days a year .



2, FPGA image process

Adopt FPGA that is the most powerful image chip process technology at present.

FPGA support various world's leading image processing technology, for example: DCDI edge smooth, ACM color automatically adapt, CSS light crosstalk suppression, SHARPNESS enhancement, dynamic contrast ratio enhancement, the real six axis color overlap, eliminate the noise amplification ect.

In addition, possess many advanced function like 3D comb filter video decoding function, 3D noise reduction and automatic adapt moving compensation's remove isolation technology, skin color adjust, enhance color brightness, GAMMA adjust and frame frequency switch ect.

Which make output image texture smooth and sharp, clear and fluent, bright color without sawtooth and trailing .



3, Powerful operation capability

Data use parallel processing, output port occupy one channel with data bandwidth reach 10.2G/S and high speed dynamic image without trailing, delayed, tear, frame loss, image catch up phenomenon.



4, Support input and output HD signal of 1920*1080

TK-FH41 HD Multi Viewer support 4BNC, 4VGA, 4HDMI, 12 input signal totally, and support interlaced and line-by-line.

It support ultrahigh input resolution of 1920*1080 and downward compatibility; The highest output resolution up to 1920*1080 - After all input signal go though professional image processing chips and line-by-line export HDMI signal of 60HZ, then can also customize output resolution according to user's demand.



5, USB switch

TK-FH41 Multi Viewer is the only product that built-in USB switch in the market, which perfectly solute the question that previous product can't synchronous switch video with USB connecting device(like USB mouse, keyboard).

It will be widely used in various kinds video conference situation, will more convenient, more efficient, save more display equipment and operating space for user.



6, Regulatory Transparency

Support PIP, so you can regulatory transparency for upper pitcture, therefore you can see base picture though upper image



controller

1, software control

TK-FH41 HD multi viewer contain TK-FH sofeware .

exe of green control with visual interface, available when starting up, which can achieve global function arbitrarily and fastly switch after custom 16 shortcut like switch input signal, adjust Size and position of image by using the mouse, saving or invoking shortcut ect.





2, IR control

IR control can invoke 10shortcut mode without staring up computer;

Through IR can choose input signal of each channel, and adjust output resolution.

3, Case key control

There have 14 shortcut keys in the front panel, can realize 10 shortcut switch which are correspondent with IR control, and mouse, keyboard switch alone.



4, Center control

TK-FH41 adopt frequently-used control code, user using center control after write control code into center processor accordding to demand;
