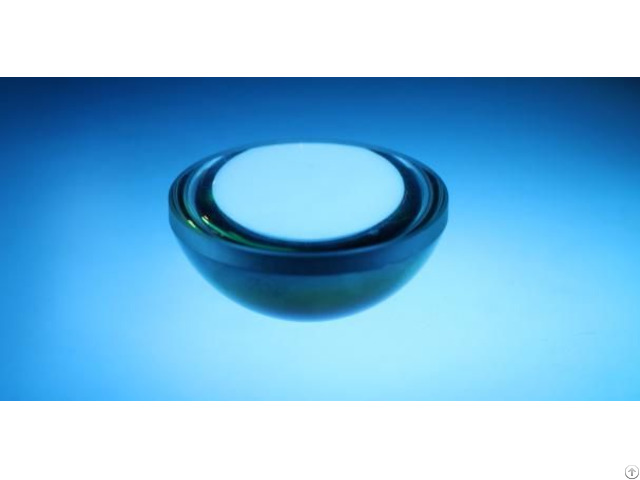

Asphere Lenses - China

Due to the more complex surface profile of asphere which significantly reduces or eliminate optical aberrations as compared to the simple lens, Aspheric lenses have at least one surface that is not a true sphere, It has been more widely exploited in the lens optical design stage.

Using aspheres to replace a much more complex multi-element spherical system leads to the result of the optical device can be more compact, lighter, transmit more light and in certain cases be cost effective than the multi-lens spherical design.

At Hyperion Optics, we are equipped with Optotech asphere machine which offers our customers with contour deterministic micro grinding (CDMG) service, uses the accuracy and repeatability of a computer numerically controlled machine to grind the optical shape.

We start by grinding the best-fit sphere to remove the bulk material and contour the aspheric shape into the optical material from edge to center.

Typical materials available of our fabrication capability are optical glass, ZnSe, ZnS, BaF2, GaAs, and chalcogenide glass.

We also accept materials supplied by customers.

Optical Machining Centers capability: • Capacities from 5mm to 400mm

• 1000 to 24, 000 rpm tool spindle

• Automatic curve correction

• Tool& Workpiece probing system

• Dual tool spindles option

Company Contact:

• Posted By: Hyperion Optics

• Phone: +86-25-86626311

• Address: BaoXiang Road#6, Nanjing, China, NanJing , JiangSu , China

• Email:

• Website: http://www.hypoptics.com/

• Business Description: "Hyperion Optics is a leading optics supplier of photonics products including optical components, lens systems and opto-mechanical assemblies in UV, Visible, NIR, SWIR applications.

  Our clients spanning across defense, security, bioengineering, pharmaceutical, institutional, industrial and research industries worldwide.

  We specialize in DFM (Design for Manufacturing) input from rapid prototyping to volume production.

  Our comprehensive metrology coupled with our cost-effective Philosophy help Hyperion customers obtain a competitive edge in the global market.

  Compared to other Chinese vendors, Hyperion has the most experienced engineering team to provide technical backups and consultation for our customer with multi-languages skills, seamless communication is also an advantage.

  Free consultation for your optical system and preliminary design is also available now!"
