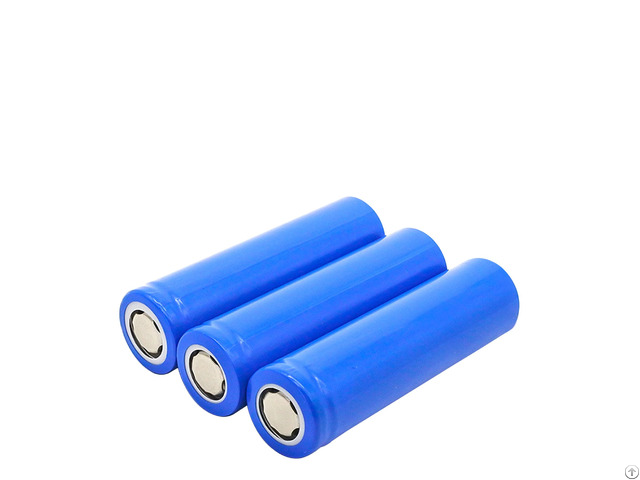

Xbatt 3 7v2000mah Lithium Battery Cell For Electric Tool - China

项 目 Item 规格 Specifications

1.

最小容量(0.2C5A� ��电)

Minimum Capacity (0.2C5A discharge) 2000mAh

2.

典型容量(0.2C5A� ��电)

Nominal Capacity (0.2C5A discharge) 2000mAh

3.

额定电压 Nominal Voltage 3.7V

4.

放电终止电压(� ��小) Discharge Cut-off Voltage 2.75V

5.

充电限制电压(� ��大) Max Charge Voltage 4.2±0.03V

6.

充电电流(标准) Standard Charging Current 0.5C5A

7.

放电电流(标准) Standard Discharge Current 0.5C5A

8.

充电电流(最大) Max.

Charge Current 1C5A

9.

持续放电电流(� ��大)

Continuous Maximum Discharge Current 1C5A

10.

瞬间放电电流

Instantaneous Discharge Current 3C5A

11.

内阻 Impedance ≤60mΩ

12.

重量 Weight 43.0±2.0g

13.

能量密度Energy Density 重量Weight 172Wh/kg 体积Volume 438Wh/L

14.

外形尺寸Outline Dimension 直径Diameter φ18.2±0.3mm 高度height 65.0±0.2mm

15 - 工 作 温 度 Operating Temperature 充电Charging 0～45℃ 放电Discharging -20～60℃

16.

储存温度 Storage Temperature -5～35℃

17.

标准环境Standar d Environmental Condition 温度Temperature 25±2℃ 湿度Humidity 45-75%RH 大气压Atmospheric Pressure 86-106KPA
