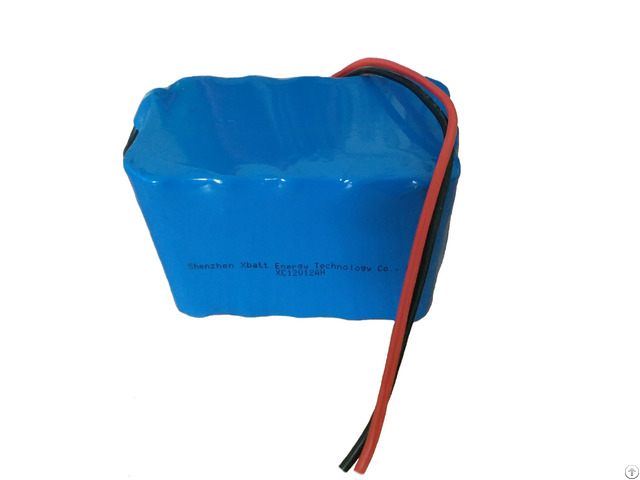

Xbatt 12v10ah Lithium Battery Pack For Portable Speaker - China

项 目 Item 规格 Specifications

1.

最小容量(0.2C5A� ��电)

Minimum Capacity (0.2C5A discharge) 9.75Ah

2.

典型容量(0.2C5A� ��电)

Nominal Capacity (0.2C5A discharge) 10Ah

3.

额定电压 Nominal Voltage 12V

4.

放电终止电压(� ��小) Discharge Cut-off Voltage 8.25±1.5V

5.

充电限制电压(� ��大) Max Charge Voltage 12.6V

6.

充电电流(标准) Standard Charging Current 2.4A

7.

放电电流(标准) Standard Discharge Current 2.4A

8.

充电电流(最大) Max.

Charge Current 6A

9.

持续放电电流(� ��大)

Continuous Maximum Discharge Current 6A

11.

内阻 Impedance ≤160mΩ

12.

重量 Weight 0.81kg

13.

外形尺寸Outline Dimension 125*57*73mm

14.

外露线Exposed line 100-305mm

14.

正极Positive Red wire with 3135 16AWG

16.

负极Positive Black wire with 3135 16AWG

15 - 工 作 温 度 Operating Temperature 充电Charging 0～45℃ 放电Discharging -20～60℃

16.

储存温度 Storage Temperature -20～60℃

17.

标准环境Standar d Environmental Condition 温度Temperature 25±2℃ 湿度Humidity 45-75%RH 湿度Humidity 45-75%RH 大气压Atmospheric Pressure 86-106KPA
