Pure Gel Battery 12v100ah For 48v Solar Power System Htl12 100ah - China

CSPOWER Company information CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery.

The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery ; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.

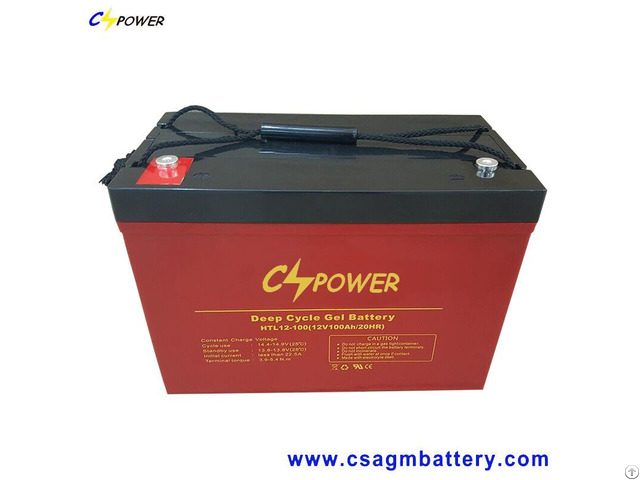

Pure GEL battery 12V100Ah for 48V solar power system, HTL12-100Ah Characteristics for CSPOWER UPS Free Maintenance Solar Gel Battery 12V (HTL type) NEWEST IN 2016, CSPOWER PATENTED DEEP CYCLE LONG LIFE GEL BATTERY, BEST CHOICE TO WORK IN HOT/COLD TEMPERATURE SITES AND LONG LIFE OVER 15YEARS.

Many countries in Middle East and Africa such as Pakistan, Israel, Nigeria, Western African countries have an average temperature of 40°C during hot season.

If the battery lay out of door, the temperature is even higher and can go up to 50 °C.

You may already know it, for every 10°C increase in temperature, the battery life will be reduced by half.

Due to the nature and construction of the normal AGM lead acid battery, it cannot bear such a hot temperature, this is why for outdoor use have to be equipped with air-conditioner.

Not only does it increase your capital expenses (CAPEX) and operational expenditure (OPEX) by spending thousands of dollars per year and per site in maintenance & electricity fees, it will also increase the energy used and thus increase your CO2 emissions.

Reduction of Energy Consumption and increase of Energy Efficiency is one of the most important keys for outdoor use application.

Such problem also occur in super cold area such as Russia, Ukraine, Canada and so on.

Considering the above challenge, we developed a new range type of battery adapted for these environments.

We are proud to introduce our High/Cold Temperature Long Life Deep Cycle GEL Battery - HTL series.

Using thick plate design with special additives (super-C).

This newly developed battery can work even high temperature up to 60°C and low temperature down to -20°C without the use of any air-conditioner.

Pure GEL battery 12V100Ah for 48V solar power system, HTL12-100Ah Features of CSPOWER UPS Free Maintenance Solar Gel Battery 12V (HTL type) HTL series is specially High-temperature sealed free maintenance deep cycle GEL battery with 15-20 years design life in float service, 30% more than standard Gel battery, and 50% more than Lead Acid AGM battery.

It meets with IEC, CE and ISO standards.

With up-dated valve regulated technology and high purity raw GEL materials, the HTL series battery maintains high consistency for better performance and reliable standby service life.

It is designed specially for using under high and cold temperature sites.

Pure GEL battery 12V100Ah for 48V solar power system, HTL12-100Ah Advantages for CSPOWER UPS Free Maintenance Solar Gel Battery 12V (HTL type) 1 - Three years warranty at 35°C-40°C average 2 - Able to operate at -40°C to 60°C

3 - Longer life and higher stability under high temp.

environment (no air-con needed)

4 - Use super-C additives lead plates: Deep discharge recovery capability

5 - Cycle usage: 50% DOD, 1500 Cycles work in high/cold temp.

area.

Pure GEL battery 12V100Ah for 48V solar power system, HTL12-100Ah Construction of CSPOWER UPS Free Maintenance Solar Gel Battery 12V (HTL type) 1 - Positive plate: Thick high Sn low Ca grid minimize corrosion and prolong life

2 - Negative plate: Balanced Pb-Ca grid for improved recombination efficiency

3 - Separator: Advanced AGM separator for ultra low float current

4 - Electrolyte: nano Silicon GEL electrolyte import from Evonik Degussa Germany.

5 - Battery container and cover: fire resistance ABS for higher temperature

6 - Pillar seal: 100% factory tested, proven two layers epoxy resin seal

7 - Relief valve : Complete with integrated flame arrestor Pure GEL battery 12V100Ah for 48V solar power system, HTL12-100Ah Applications of CSPOWER UPS Free Maintenance Solar Gel Battery 12V (HTL type) BTS Stations, Solar & Wind energy system, UPS system, Golf Cart&Electric Wheels, and Other power system
