Lifepo4 51 2v 200ah Future Energy Mobile Industrial Batteries - China

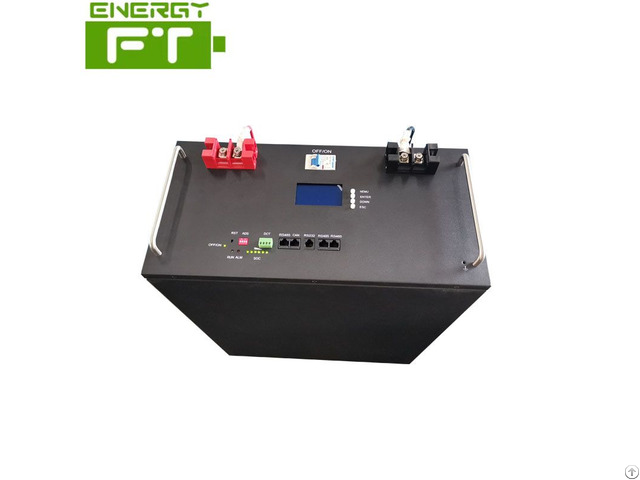

LiFePO4 51, 2V 200Ah Future Energy Mobile Industrial Batteries LiFePO4(lithium iron phosphate)is a lithium-ion Battery technology that is safe, powerful and plug compatible with most lead acid Battery charging systems.

Future Energy LiFePO4 12V Lithium Iron Phosphate Battery has twice the power, half the weight, and lasts & times longer than a sealed lead acid battery, no maintenance, extremely safe and very low toxiciy for environment.

Our Vision: Provide world-class solar Li-ion battery pack solution for world-widely customers 1 - Major technique parameters of Lithium ion battery pack: 1)Battery model: FT48200-5U 16S 2)Normal Capacity: 200Ah 3)Normal Voltage: 51, 2V 4)Energy: 10, 24KWh 5)Charging Voltage: ≤58, 4V 6)Shell materials: Q235 7)Max.

Continuous Charge &Discharge Current: 0.5C(100A) 8)Operation Temperature Range(Charge): 0-45ºC 9)Operation Temperature Range(Discharge): -20~65ºC 10)Dimensions: Approx.

442*580*221mm(17, 4*22, 8*8, 7in)Excluded terminals, handles & mounting ears) 11)N.

W: Approx.

85KG 2 - LiFePO4 Battery widely used in: Energy storage system: 24V 100Ah, 24V 200Ah, 48V 100Ah, 48V 200Ah, 48V 300Ah, 51, 2V 100Ah, 51, 2V 200Ah.

5KWh, 10KWh, 15KWh LiFePO4 Battery for Solar energy storage, Home energy storage, Wind energy storage, Hydro energy storage, Off-grid system, solar power system, Camping, Island, Outdoor power supply, Telecom, base station, Data centers, Server rooms, UPS(Uninterrupted Power Supply), Backup System, Forklift, Golf Cart, RV, AGV, electric boats, Marine, Medical Equipment etc Hot applications.

3 - LiFePO4 Battery major features: 1)Standard size: it can be installed in standard 19”cabinet.

Height: 5U only, Save space.

2)High energy density & Environmental Protection economy.

3)Meets all UN transportation testing 4)Intelligent BMS: it can be communicated with FSU, real-time monitoring and remote control battery string status, anti-theft locking machine, alarm model output etc.

5)Voltage, Capacity, Shell, Cables, Connector, Functions, brand etc can be customized.

6)Avoid Over Charge, Over Discharge, Short-Circuit Over Current, Over Voltage, Overload etc and have Balance Voltage, Anti-Protection, Temperature detection, Communicate Function, Alarm, Wireless monitoring functions etc.

7)Widly operating temperature range: -20~65℃ 8)Superior safety: Reliable Built-In BMS, Voltage, Current, Temp.

and Health Management; 9)Longer Cycle-life: over 3000times at 1C discharge(@25℃, 80%DOD), much Lower usage cost 4 - Major tests ensure high quality: 1)Initial Performance Test A.

Open-Circuit Voltage B.

Internal Impedance C: Min.

Rated Capacity 2)Cycle Life 3)Leakage-Proof Test 4)Vibration Test 5)Drop Test 6)Crush Test 7)Short Circuit Test: BothºC20 and 60ºC 8)Impact Test 9)Forced Discharge Test 10)Nail Pricking Test .

5 - Warning: Do not dispose of in fire or heat.

Do not run it to out of power, or it would not be charged again.

Do not puncture, damage and disassemble.

Do not mix fresh batteries with used batteries.

Please avoid short-circuit operation in case of generating high temperature.

Please avoid charging and using at thesame time.

it is harmful to the battery.

Company Contact:

• Posted By: Zhuhai Future Energy Technology Co.Ltd

• Phone: 0086-(756)-6835803

• Address: Fushan Industrial Park,Doumen District, Zhuhai , China

• Email:

• Business Description: Zhuhai Future Energy Technology Co.

  Ltd is a Professional Innovative research and development manufacturer of Lithium Battery,Solar Battery,LiFePo4 Battery,Storage battery,Lithium ion battery,Li-ion battery,Powerwall Battery,Wall mounted Battery,Home Battery,Inverter Battery,LFP Battery,ODM Battery Pack in China.

  Offer you Best Lithium Battery solution!
