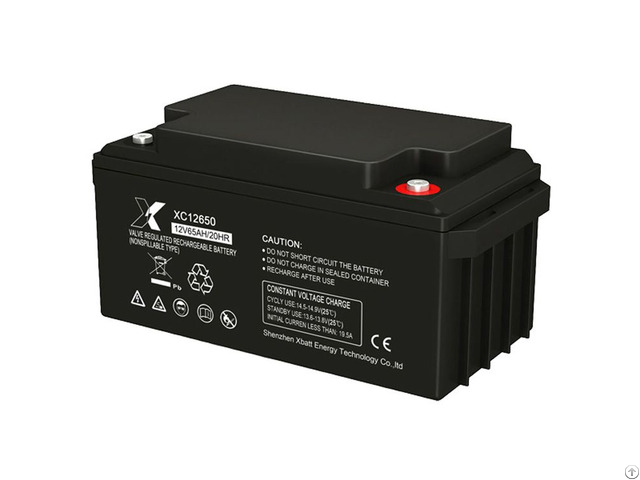

12v65ah Agm Lead Acid Battery For Solar System - China

Specification

Nominal Voltage 12V

Nominal Capacity (20HR) 80.0AH

Product Series GEL

Dimensions Length 350±2mm(13.77inches) Width 166±2mm(6.53inches) Container Height 175±3mm(6.88inches) Total Height(with Terminal) 175±2mm(6.88inches)

Approx Weight 23.5kg/51.7 lbs

Terminal M6-16/M8-16

Rated Capacity 80AH/4.0A (20HR, 10.80V, 25℃/77℉) 76AH/7.6A (10HR, 10.80V, 25℃/77℉) 64AH/12.8A (5HR, 10.80V, 25℃/77℉) 56AH/18.6A (3HR, 10.80V, 25℃/77℉) 48AH/48.0A (1HR, 10.20V, 25℃/77℉)

Max.

Discharge Current 960A(5s)

Internal Resistance Approx 6mΩ

Operating Temp.

Range Discharge: -35~50℃(5~122℉) Charge: -20~40℃(32~104℉) Storage: -45~40℃(5~104℉)

Nominal Operating Temp.

Range 25±3℃(77±5℉)

Cycle Use Initial Charging Current less than 24.0A.

Voltage 14.6V~14.9V at 25℃(77℉) Temp.

Coefficient -5mV/℃

Standby Use Initial Charging Current less than 24.0A Voltage 13.6V~13.9V at 25℃(77℉) Temp.

Coefficient -3mV/℃

Capacity affected

by Temperature 40℃ 104℉ 103% 25℃ 77℉ 100% 0℃ 32℉ 95%

Self Discharge Xbatt GEL series batteries may be stored for up to 12 months at25℃(77℉) and then a freshening charge is required.

For higher temperatures the time interval will be shorter

Design Life 15 years
