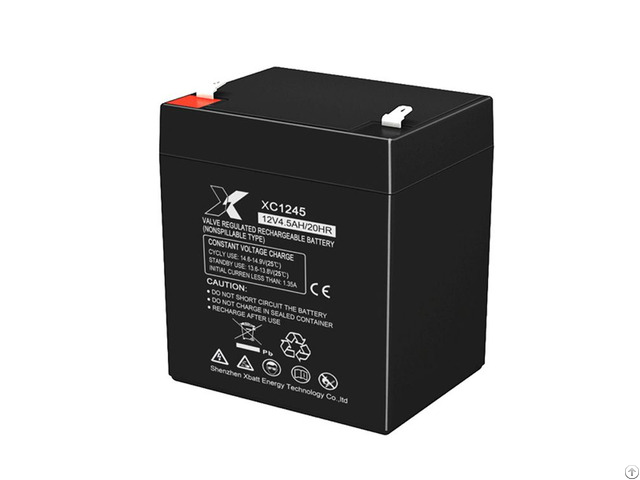

12v4 5ah Lead Acid Battery For Ups - China

Specification

Nominal Voltage 12V

Nominal Capacity (20HR) 4.5AH

Product Series Standby

Dimensions Length 90±2mm(3.54inches)

Width 70±2mm(2.75inches)

Container Height 100±3mm(3.93inches)

Total Height(with Terminal) 105±1mm(4.13inches)

Approx Weight 1.40 kg/3.08 lbs

Terminal F1/F2

Rated Capacity 4.6AH/0.23A (20HR, 10.80V, 25℃/77℉)

4.5AH/0.45A (10HR, 10.80V, 25℃/77℉)

3.83AH/0.76A (5HR, 10.80V, 25℃/77℉)

3.37AH/1.12A (3HR, 10.80V, 25℃/77℉)

2.92AH/2.92A (1HR, 10.20V, 25℃/77℉)

Max.

Discharge Current 67.0A(5s)

Internal Resistance Approx 35mΩ

Operating Temp.

Range Discharge: -15~50℃(5~122℉)

Charge: 0~40℃(32~104℉)

Storage: -15~40℃(5~104℉)

Nominal Operating Temp.

Range 25±3℃(77±5℉)

Cycle Use Initial Charging Current less than 1.35A.

Voltage 14.6V~14.9V at 25℃(77℉) Temp.

Coefficient -5mV/℃

Standby Use Initial Charging Current less than 1.35A Voltage 13.6V~13.9V at 25℃(77℉) Temp.

Coefficient -3mV/℃

Capacity affected

by Temperature 40℃ 104℉ 103%

25℃ 77℉ 100%

0℃ 32℉ 80%

Self Discharge Xbatt series batteries may be stored for up to 6 months at25℃(77℉) and then a freshening charge is required.

For higher temperatures the time interval will be shorter

Design Life 5 years
