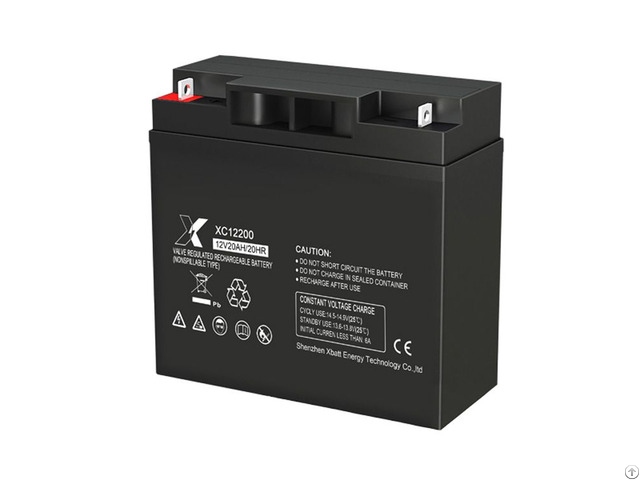

12v20ah Agm Battery For Ups - China

Specification

Nominal Voltage 12V

Nominal Capacity (20HR) 20.0AH

Product Series Standby

Dimensions Length 181±2mm(7.12inches) Width 76±2mm(3.00inches) Container Height 166±3mm(6.53inches) Total Height(with Terminal) 166±2mm(6.53inches)

Approx Weight 5.90 kg/12.98 lbs

Terminal L1

Rated Capacity 21.0AH/1.05A (20HR, 10.80V, 25℃/77℉) 20.0AH/2.00A (10HR, 10.80V, 25℃/77℉) 17.0AH/3.40A (5HR, 10.80V, 25℃/77℉) 15.0AH/5.00A (3HR, 10.80V, 25℃/77℉) 13.0AH/13.0A (1HR, 10.20V, 25℃/77℉)

Max.

Discharge Current 300A(5s)

Internal Resistance Approx 12mΩ

Operating Temp.

Range Discharge: -15~50℃(5~122℉) Charge: 0~40℃(32~104℉) Storage: -15~40℃(5~104℉)

Nominal Operating Temp.

Range 25±3℃(77±5℉)

Cycle Use Initial Charging Current less than 6.0A.

Voltage 14.6V~14.9V at 25℃(77℉) Temp.

Coefficient -5mV/℃

Standby Use Initial Charging Current less than 6.0A Voltage 13.6V~13.9V at 25℃(77℉) Temp.

Coefficient -3mV/℃

Capacity affected

by Temperature 40℃ 104℉ 103% 25℃ 77℉ 100% 0℃ 32℉ 80%

Self Discharge Xbatt batteries may be stored for up to 6 months at25℃(77℉) and then a freshening charge is required.

For higher temperatures the time interval will be shorter

Design Life 5 years
