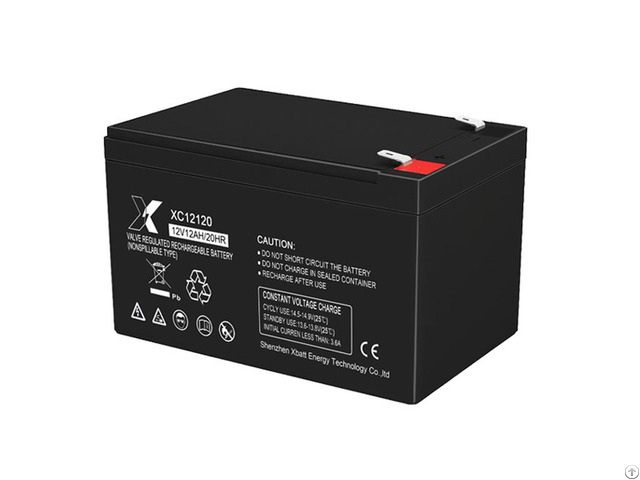

12v12ah Lead Acid Battery For Portable Speaker - China

Nominal Voltage 12V

Nominal Capacity (20HR) 12.0AH

Product Series Standby

Dimensions Length 151±2mm(5.94inches)

Width 98±2mm(3.85inches)

Container Height 95±3mm(3.70inches)

Total Height(with Terminal) 100±1mm(3.90inches)

Approx Weight 3.40kg/7.48 lbs

Terminal F1/F2

Rated Capacity 12.0AH/0.60A (20HR, 10.80V, 25℃/77℉)

12.0AH/1.20A (10HR, 10.80V, 25℃/77℉)

10.20AH/2.04A (5HR, 10.80V, 25℃/77℉)

9.00AH/3.00A (3HR, 10.80V, 25℃/77℉)

7.72AH/7.72A (1HR, 10.20V, 25℃/77℉)

Max.

Discharge Current 180A(5s)

Internal Resistance Approx 15mΩ

Operating Temp.

Range Discharge: -15~50℃(5~122℉)

Charge: -0~40℃(32~104℉)

Storage: -15~40℃(5~104℉)

Nominal Operating Temp.

Range 25±3℃(77±5℉)

Cycle Use Initial Charging Current less than 3.60A.

Voltage 14.6V~14.9V at 25℃(77℉) Temp.

Coefficient -5mV/℃

Standby Use Initial Charging Current less than 3.60A Voltage 13.6V~13.9V at 25℃(77℉) Temp.

Coefficient -3mV/℃

Capacity affected

by Temperature 40℃ 104℉ 103%

25℃ 77℉ 100%

0℃ 32℉ 80%

Self Discharge Xbatt batteries may be stored for up to 6 months at25℃(77℉) and then a freshening charge is required.

For higher temperatures the time interval will be shorter

Design Life 5 years
