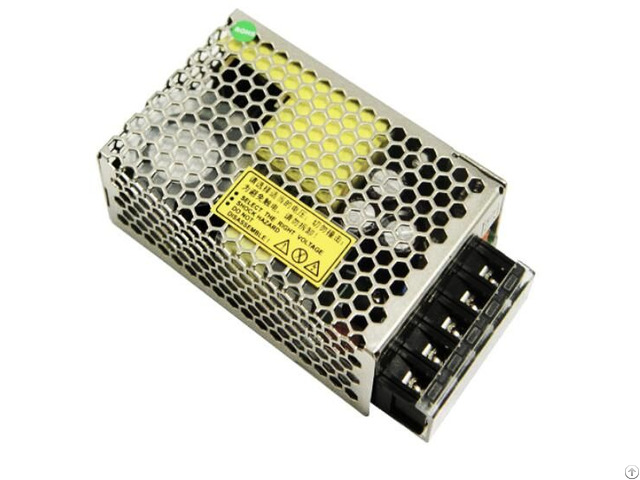

15w Enclosed Ac Dc Switching Power Supply - China

The rated output power of TPC/PD-15-XS series is 15W, input voltage range：90-264VAC, output voltage : 3.3V, 5V, 12V, 15V, 24V.

High reliability, precision, effificency, ultra-small size, with short circuit, over-load, over-voltage protection, Widely used in telecommunications, industrial control, instrument, data acquisition, signal control, New Energy, Security, and other electronic systems.

AC input ：90VAC-264VAC 100% full load burn-in test short circuit, overload, over-voltage protection Operating temperature：-20℃~70â„ ƒ RoHS complaint Low standby power consumption<0.5W All using 105℃ long-life electrolytic capacitors High reliability, effificency, long life-time Miniature size

SELECTION GUIDE

Part Number Input Output Efficiency

@25℃, (Typ)% Volatge(VAC) Voltage(VDC) Pre-set voltage

@25℃(V) Rated current(A) Current range(A) Rated power(W) Rated Range values TPC/PD-15-3.3S 220 90-264 3.3 3.3-3.35 4.0 0-4.0 13.2 70

TPC/PD-15-5S 220 90-264 5 5.00-5.05 3.0 0-3.0 15 76

TPC/PD-15-12S 220 90-264 12 12.00-12.05 1.3 0-1.3 15.6 80

TPC/PD-15-15S 220 90-264 15 15.00-15.05 1.0 0-1.0 15 82

TPC/ PD-15-24S 220 90-264 24 24.00-24.05 0.7 0-0.7 16.8 84
