Cw3000 Water Cooling Chiller For Co2 Engraving - China

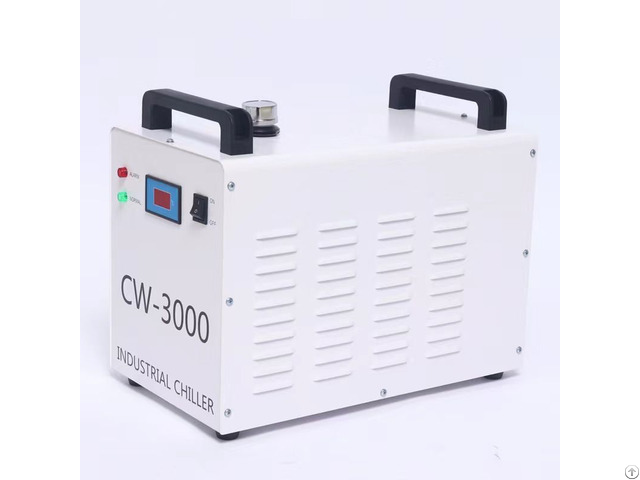

Engraving Type S&A brand CW3000 Water Cooling Chiller

Summary

CW-3000 series thermolysis type water cooler has compact design, with energy saving, high cost performance, good protection and alarm system.

It’s mainly used on the equipment for heat exchange between the heat and the air environment.

Features:

1 - Radiating capacity: 50W / centigrade;

2 - Small thermolysis water cooler, energy saving, long working life and simple operation; 3 - With completed water flow and over high temperature alarm functions;

4 - Multiple power specifications;

Specfication

CW-3000AH: applied to cool dual 1.5 KW CNC spindles or welding equipment;

Model CW-3000AG CW-3000DG CW-3000AF CW-3000DF CW-3000AH CW-3000DH

Voltage AC 1P 220V AC 1P 110V AC 1P 220V AC 1P 110V AC 1P 220V AC 1P 110V

Frequency 50/60Hz

Current 0.45A 0.9A 0.45A 0.9A 0.45A 0.9A

Radiating capacity 50W/centigrade

Tank capacity 9L

Inlet and outlet External D10mm brass connector D8mm speedy connector External Φ8mm speedy connector

Max.

lift 10M 12M

Max.

flow 10L/min 13L/min

Protection Flow alarm

N.

W 9.5Kgs

G.

W 12Kgs

Dimension 52 x 32 x 38cm (L x W x H)

Packing dimension 62 x 43 x 51cm (L x W x H)
