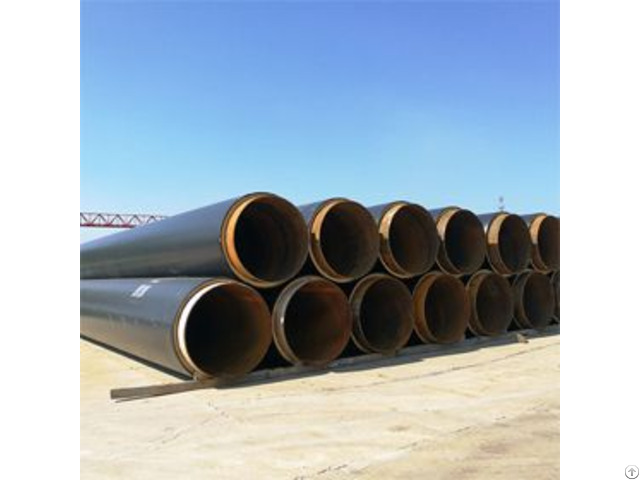

Thermal Insulation Direct Buried Pipe - China

Thermal insulation direct buried pipe can also be called pre insulated pipe, they are a kind of heat pipeline.

We can supply high quality Heating Pipeline, welcome to choose us!

Product Indexes Reference Standard Standard Requirement Our product value

Outer protection pipe

Density (kg/m3 ) CJ/T114-4.2.3.1 ≥940 948.2

Elongation at break (%) CJ/T114-4.2.3.4 ≥350 618

Tensile yield strength (MPa) CJ/T114-4.2.3.4 ≥19 20.5

Longitudinal shrinkage rate (%) CJ/T114-4.2.3.5 ≤3 1.23

Long term Mechanical properties CJ/T114-4.2.3.6 >1500h(80℃, 4.0 MPa)free from damage Pass

The difference of the melt flow rate (g/10min) CJ/T114-4.2.3.2 ≤0.5 0.11

Carbon Black Content % CJ/T114-4.2.3.1 2.5±0.5 2.4

Polyurethane insulation layer

Density (kg/m³) CJ/T114-4.3.2 ≥60 71.1

Average pore size (mm) CJ/T114-4.3.1 ≤0.5 qualified

Percentage of close area(%) CJ/T114-4.3.1 ≥88 94

Compressive strength(MPa) CJ/T114-4.3.3 ≥0.3 0.58

Water absorption(%) CJ/T114-4.3.4 Immersion in boiling water 90 minutes, bubble water absorption should be not more than 10% ≤5.53

Working steel pipe

Seamless steel pipe(≤DN150) GB8163 20# qualified

Spiral steel pipe(≥DN200) GB/T9711 or SY/T5037 Q235B qualified

PRODUCT FEATURES

Product name Thermal insulation direct buried pipe

Length 5.8m-12m, or by customer's requirements

Nominal diameter DN25-1800

Laid way Buried

Application Fluid Pipe, Natural gas, Gas, Oil, Hydraulic, chemical, drill, etc.

Production Standard The national standard GB/T29047-2012, CJ/T114-2000, CJ/T155-2001
