Ht200 Aerogel Blanket For Cold Insulation - China

Huatao Group - Aerogel Blanket

Web: www(dot)aerogel-blanket.

c om Email: sandy(at)huataogroup.

com Tel: 0086 133 8311 0583 WhatsApp: 0086 133 8311 0583 Specification

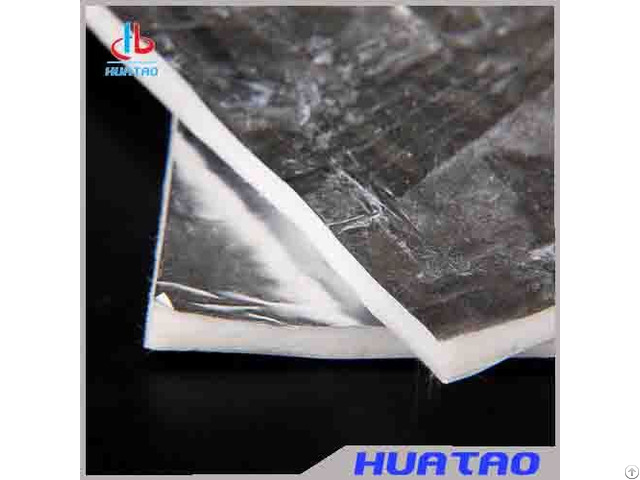

HT200 - Aerogel insulation blanket with Aluminium foil, similar to Cryogel Z ( mainly used for the cold insulation, such as LNG, Working temperature from -190ºC-200ºC ), the thermal conductivity from 0.017-0.023 W/m.

k Description:

HT200 series aerogel blanket is a kind of flexible, low-temperature, and high-efficiency cold-proof felt.

This material combines nano-aerogel with special fiber to produce flexible, ultra-low thermal conductivity, high-efficiency thermal insulation felt, suitable for liquid nitrogen, LNG, and other low-temperature industrial pipes, tanks, and equipment cold-proof and heat-insulating.

HT200 series aerogel blanket are the best products in cold insulation materials and are ideal for customers to pursue better low-temperature cooling effects and lower energy consumption.

HT200 - Aerogel insulation blanket with Aluminium foil, similar to Cryogel Z ( mainly used for the cold insulation, such as LNG, Working temperature from -190ºC-200ºC ), the thermal conductivity from 0.017-0.023 W/m.

k Application advantages of HT200 Aerogel Blanket for Heat Thermal Insulation 1 - Superior Insulation Performance

2~5 times better than traditional insulation products with longer service life

2 - Reduced Insulation Thickness

For the same insulation performance, just take a portion of the thickness of traditional material

3 - Hydrophobicity and Fire-proof

Repel water from penetrating into pipes, equipment, A1 rating of fire-proof

4 - Easy Handling

Lightweight, easily cut and sewn to fit different shapes of pipes and equipment, Less labor for installation

5 - Transportation Costs Savings

Lower packing volume and lower weight can greatly cut down logistics costs Model HT200

Color Maroon, White, Grey, Black

Thickness 3mm / 5mm / 6mm / 10 mm

Roll Size 10mm: Width 1500mm x 30m 6mm: Width 1500mm x 38m 5mm: Width 1500mm x 42m 3mm: Width 1500mm x 45m

Hydrophobic Yes

Use of Temperature -200ºC - 200ºC

25ºC Thermal Conductivity W/(m·K) 0.017 ~0.023 W/(m·K)

OEM Yes

ODM Yes, cut into sheet, round, composite with 3M Brand adhesive, etc.
