Gea Plate Heat Exchanger Gaskets And Plates Nt150l - China

MC PLATE HEAT EXCHANGER

(1) Front (S-frame side) No maintenance space is necessary because usual maintenance is performed without removing the piping.

(2) Side The side space is necessary to turn a ratchet spanner for overhauling and reassenbling or to pull out the plates in oblique position for the maintenancepurpose.

Reserv e the maintenance space of over 800mm in width (around W'=Wmm in the case of the body width of 800mm or less) * overall sidelength Lmm.

It is desirable to reserve this space at the both sides.

When it is impossible to do so, however, reserve it at either side.

(3) Rear (E-frame side) In the case of E-frame with nozzle, reserve the overall length Lmm including the nozzle length protruding beyond the E-frame.

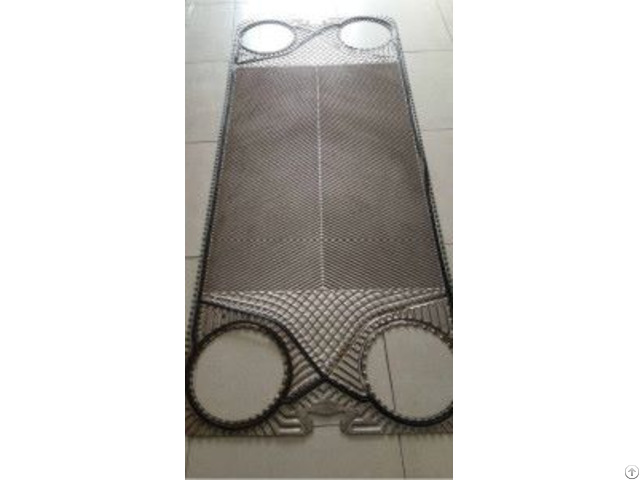

GEA Gaskets and Plates Models: VT4, VT10, VT10F, VT20, VT20P, VT40, VT40M, VT80, VT80M, VT130F, VT130K, VT402, VT405, VT405L.

VT405P, VT405M, VT405S, VT805, VT1306, VT2508, N40, NF350, CT193, B-10, B-16, NT10, NT50X, NT50M, NT50T, NT100S, NT100M, NT100X, NT100T, NT150S, NT150L.

NT250S, NT250L, NT250M, NT350S, NT350M, NT500T, GL205, GL405, FA161, FA184 THIN, FA184 THICK, LWC100T, LWCNT150, LWC250S

Company Contact:

• Posted By: M&C Plate Heat Exchanger Co.,Ltd

• Phone: 86051086770221

• Address: No.28 Xigang Road, WUXI , Jiangsu , China

• Email:

• Website: http://www.mcplateheatexchanger.com/

• Business Description: M&C Plate Heat Exchanger is a China heat exchanger manufacturer located in Wuxi, Jiangsu.

  M&C began replacement gaskets sales business in 2011, performing service and maintenance on heat exchanger gaskets and plates for other OEM models.

  M&C operates at the forefront of thermal technology, offering innovative and effective heat transfer products worldwide with a strong focus on managing energy efficiently.

  M&C specialise in the design and manufacturer of a wide range of heat exchangers for industrial, food, dairy, agricultural, hygienic, refrigeration, HVAC and marine applications.

  M&C manufactures and stocks OEM-quality specified plates and gaskets for Alfa Laval, Tranter/Swep, GEA, Sondex, APV, Mueller, Schmidt-Bretten (API), Hisaka, Thermowave, Funke, Vicarb, Cipriani, DongHwa, Accessen, and LHE.

  Example plate materials are Stainless Steel (SS304, SS316), Hastelloy, Nickel, SMO254, and Titanium.

  For your gasket requirements, M&C makes enough gaskets stock in NBR (Nitrile), HNBR, EPDM (Butyl), and Viton.

  FDA variations of NBR and EPDM are available.



  Over these years, M&C has been developing new types of heat exchangers and is committed to working closely with our customers to deliver step by step improvement.

  Were proud to operate in a sector where innovation can save energy, reduce waste, and improve final product quality without harming the environment.

  M&C is an ISO 9001 Quality Assured Company.
