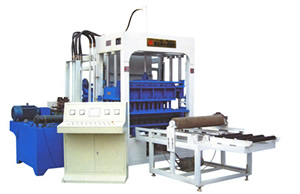

Sand Brick Making Machine 600m2 Grass 7680 - China

http: //www.

zgzyjl.

com Theoretical workshop area: 400-600m2, and it

needs about3-6 workers to operate this machine.

The office, curing area

and the stacking area are arranged according to your specific

condition.

Brief Introduction This machine adopts data-transmitting

device.

For the control system, it is configured with safety logical

control and fault diagnosis system, and it has remote control function;

In its unique mould box of material cart, there are several rows of

mixing forks, when the hopper sends the material to the top of the

mould box, the mixing forks start to forced feed the material to the

mould box, thus the problem

in distributing materials for producing porous bricks is completely solved.

A colorful material mechanism is equipped, for the secondary material distributing to produce the colorful

bricks;

It's a multi-purpose machine.

Only by changing its moulds, it can produce all kinds of hollow blocks,

porous blocks, paver blocks, grass-planting tiles, slope-protecting blocks etc.

http: //www.

zgzyjl.

com/sand-brick-making-machine.

html

sand brick making machine Features:

1)stable performance;

2)low energy-comsuming;

3)Low investment, high output ;

4)Use waste to make bricks ;

5)Easy to operate .

sand brick making machine Technical Parameters:

Forming cycle 2 0-30 (s)

Pallet Specifications 660 × 530 × 60 (mm)

Whole weight of 3 (T)

Overall dimensions 4000 × 3500 × 2300 (mm)

Alien brick mold can be based on user needs to prepare.

Product Type

L × W × H

(mm)

A quantity

Theoretical yield

Per hour

8 hours

Entities brick

240×115×53

28

6720

53760

Hole brick

240×115×90

14

3360

26880

Brick block

390×190×190

4

960

7680

Brick road

200×100×60

16

2880

23040
