Ms Buried Scraper Chain Conveyor - China

Introduction of MS Buried Scraper Chain Conveyor

Horizontal scraper chain conveyor is bulk material conveying equipment, which consists of head section with driving device, connect section, tail section, tension device, as well as scraper and chains by means of moving chains, it can continuously transport the materials in closed rectangular casing horizontally or at a slight incline.

Working principle of MS Buried Scraper Chain Conveyor

When scraper chain conveyor transports horizontally, the pressure which comes from chains in conveying direction to the materials, and the action which comes from the materials themselves cause internal friction.

This friction ensures the stable situation between material layers, and it can overcome external frictional resistance which caused by moving materials in the trough and make materials transport as whole fluid.

Features of MS Buried Scraper Chain Conveyor

Totally enclosed structure, light weight, small volume;

Convenient installation and maintenance;

Horizontal or slightly inclined transport from 0° to 30°

Multiple material feeding point and discharging point;

Conveying distance is up to 80m with material temperature lower than 120ºC

Widely used in cement plant, coal, metallurgy, mining, light, construction, chemical, grain, power industries etc.

Advantages of MS Buried Scraper Chain Conveyor

Totally enclosed structure, light weight, small volume

Convenient installation and maintenance

Horizontal or slightly inclined transport from 0 to 30

Multiple material feeding point and discharging point

Conveying distance is up to 80m with material temperature lower than 120C

Applications of MS Buried Scraper Chain Conveyor

MS buried scraper conveyor is widely used in cement plant, coal, metallurgy, mining, light, construction, chemical, grain, power industries etc.

Technical Parameters of MS Buried Scraper Chain Conveyor Model Trough Width Transport Speed Material Bulk Density Capacity Conveying Length Installation Angle (mm) (m/s) (t/m3) (m3/h) (m) (degree)

MS16 160 ---0.16 m/s ---0.20 m/s ---0.25 m/s ---0.32 m/s 0.2~1.8 t/m3 15~29 < 80m 0°~30°

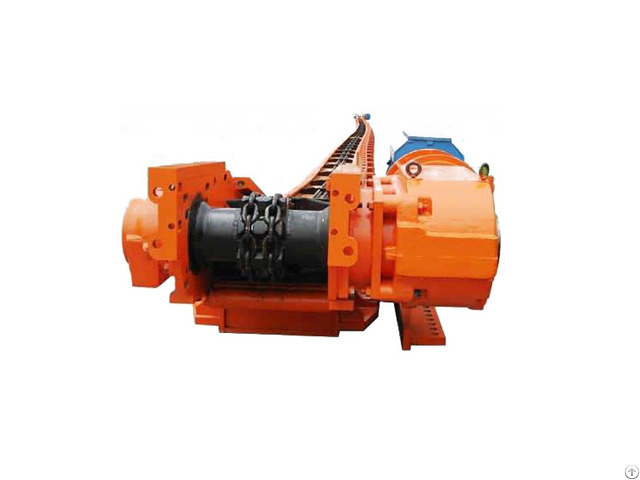

MS20 200 23~46 MS25 250 36~72 MS32 320 59~118 MS40 400 83~166 MS50 500 115~230 Pictures of MS Buried Scrap
