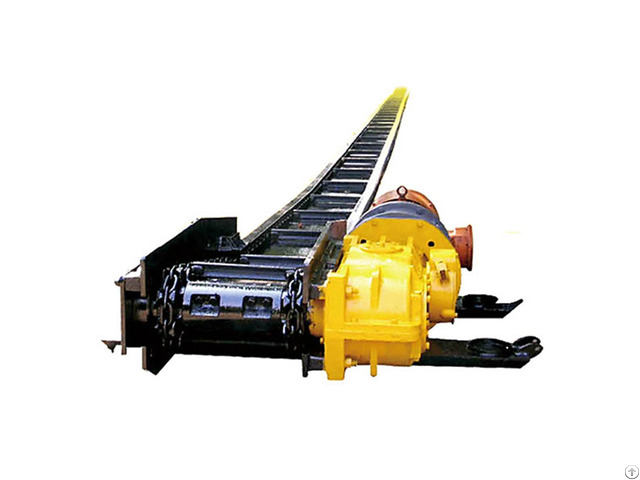

Large Capacity Chain Type Scraper Conveyor - China
price: 10000.00 Dollar US$
Introduction of Large Capacity Chain Type Scraper Conveyor
Large capacity chain type scraper conveyor is a kind of equipment used in project, which is convenient to transfer large capacity product.
Mainly used in loading and unloading location often change places, such as ports, docks, stations yard, warehouse, construction sites, sand quarry, farms, and other for short distance transport and loading and unloading of bulk materials or single piece under the weight of 100 kg.
Parameter of Large Capacity Chain Type Scraper Conveyor
Chain plate conveyor Model HB50 HB60 HB70 HB80 HB100
Chain plate width (mm) 500 600 700 800 1000
Conveying speed (m/min) 7-14
Conveying capacity (m³/h) 15-20 20-30 30-35 40-45 45-55
Conveying distance (m) General ≤40 Maximum 70
Max.
Particle size (mm) 120 160 200 240 300
Inclined angle (°) ≤30
Company Contact:
- Posted By: Shandong China Coal Group
- Phone: 865372350961
- Address: No.11 Kaiyuan Road, Jining , China
- Email:
- Website: https://www.chinacoalintl.com
Published date: May 29, 2019
- Business Description: Shandong China Coal Industrial&Mining Supplies Group Co., Ltd
(hereinafter referred to as china coal) is a group company .
which is a
collection of e commerce, machinery manufacturing, software, research
and development, modern logistics of large diversified industrial group.
