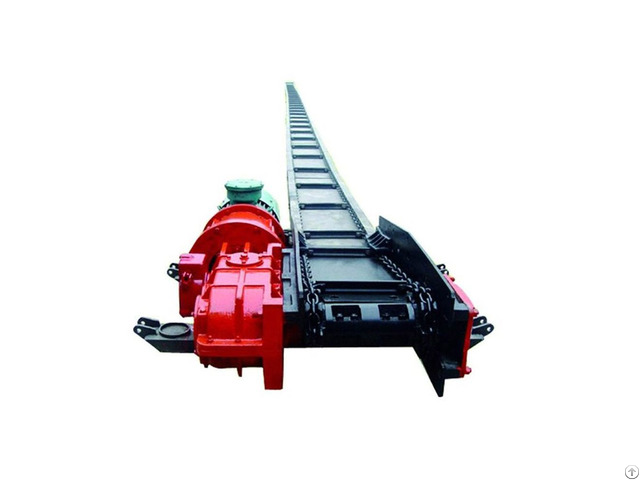

Fu Series Gravity Scraper Chain Conveyor - China

Introduction of FU Series Gravity Scraper Chain Conveyor

This system is frequently used in transporting materials between specific points over a fixed path.

There are a wide variety of conveyors (i.e., chain conveyor) that can be employed depending on the characteristics of the material to be moved as well as the move to be made.

Chain conveyors are a specialized variety of conveyor system and are used in various production implementations.

Besides chain conveyor, we also provide customers worldwide with air slide, cement production line, cement grinding plant, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, cooling equipment, drying equipment, packing machine, and electrical control system.

Parameter of FU Series Gravity Scraper Chain Conveyor

Parameter FU200 FU270 FU350 FU410 FU500 FU600

Groove Width(mm) 200 270 350 410 500 600

Capacity(m3/h) 10-30 20-60 35-100 50-130 70-200 100-270

Speed(m/min) 10-30 10-30 12-30 12-25 12-25 12-25

Chain Pitch(mm) 125 185 200 200 200 200

Distance(m) 8-50 8-50 8-50 8-50 10-40 10-40

Angle (°) ≤15

Power(Kw) 2.2-7.5 3-15 4-22 4-30 5.5-37 7.5-45

Installation Type Left/Right/Back Pack Type

Drive System Chain Drive

Granularity(mm) <5 <7 < 9 <11 <13 <15

Humidity (%) ≤5

Temperature(°C) ≤150
